Kawasaki KR1000 Endurance Replica

Fuel tank Stage 3

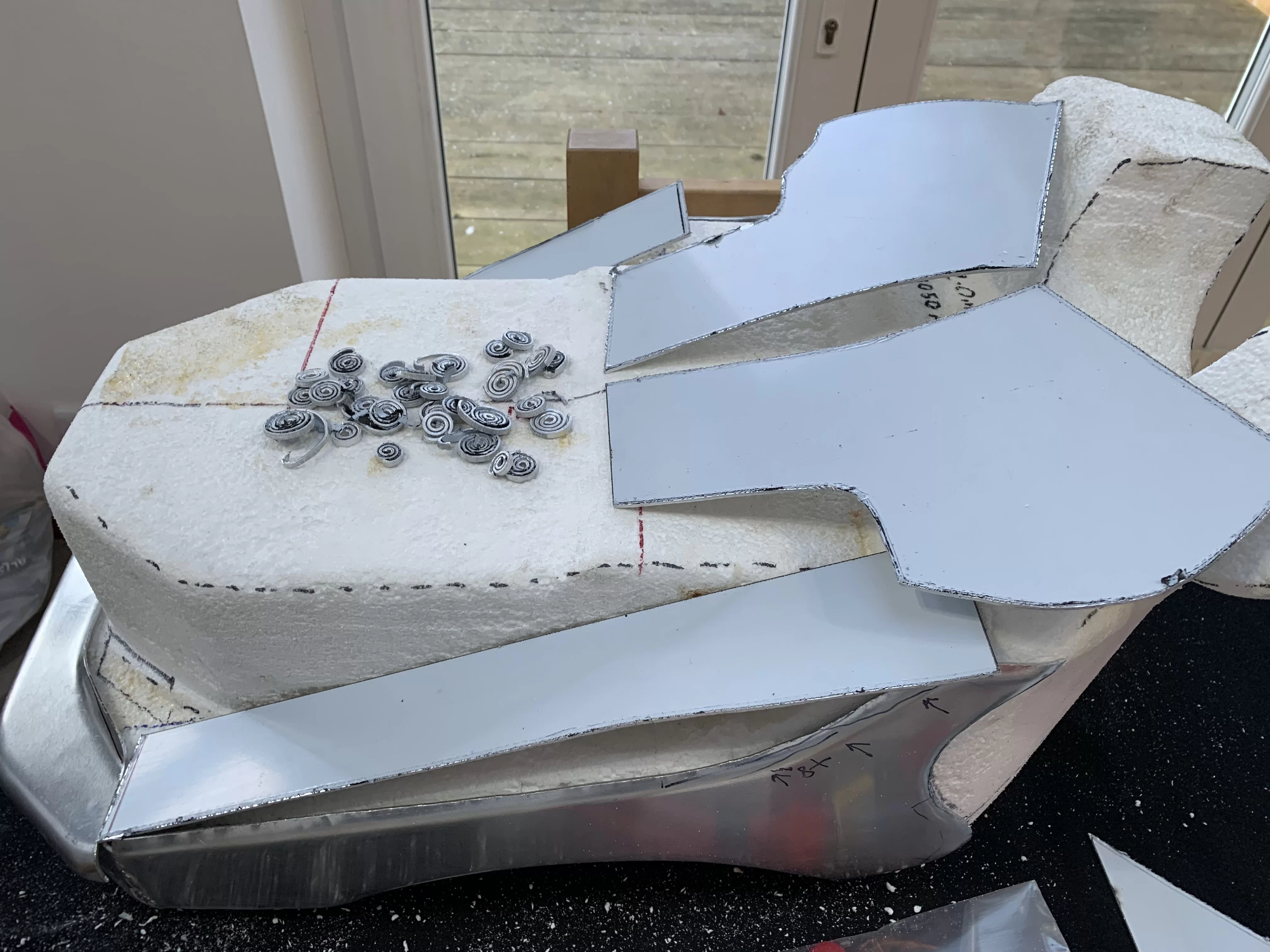

Rear Quarter panels and the start of the underside:

Kawasaki KR1000 Replica 129.webp

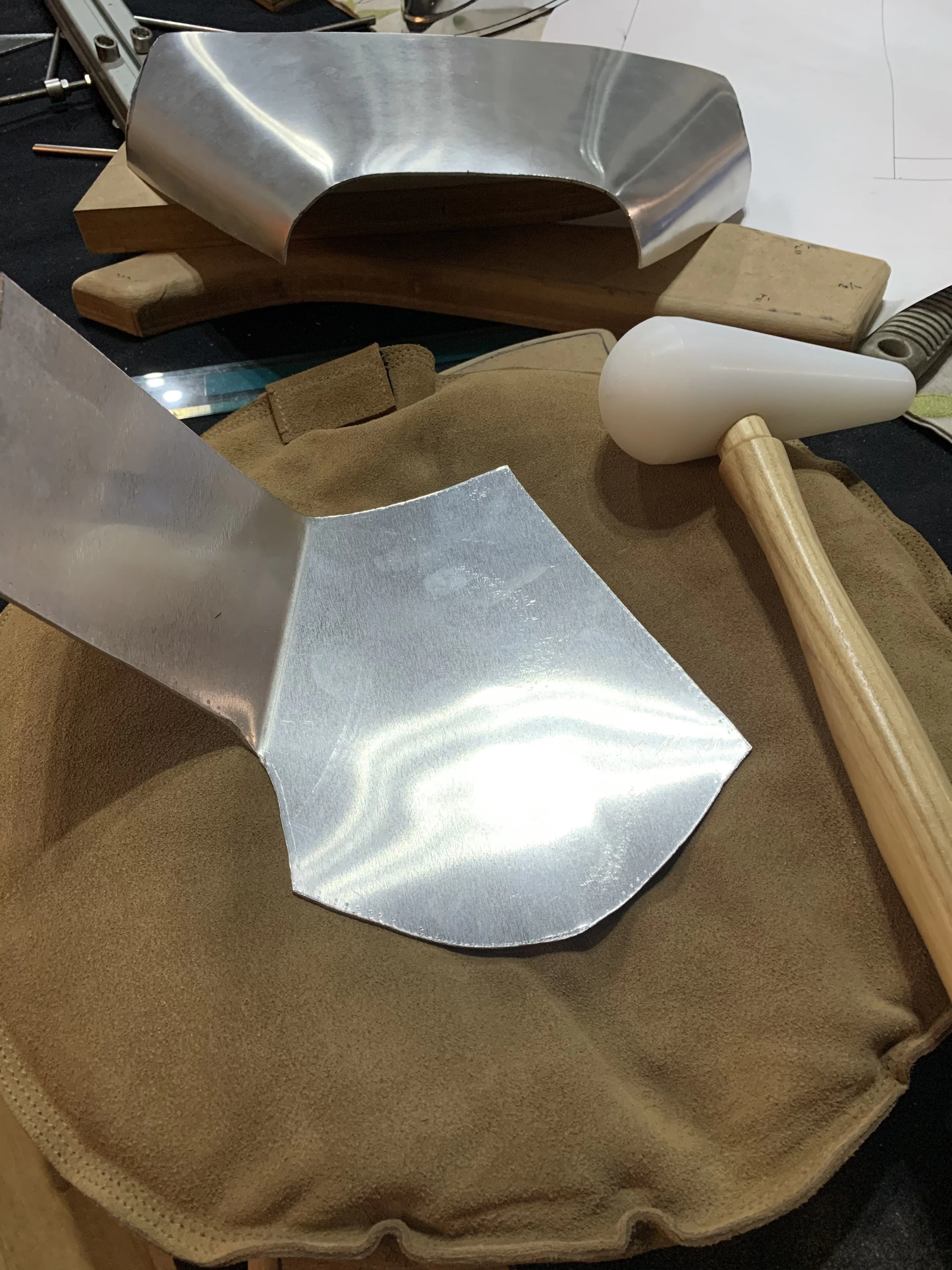

Sand Bag and some proper hammering!

Kawasaki KR1000 Replica 130.webp


Rear Panel shaped over an MDF former with a bit of hammering...

Kawasaki KR1000 Replica 131.webp

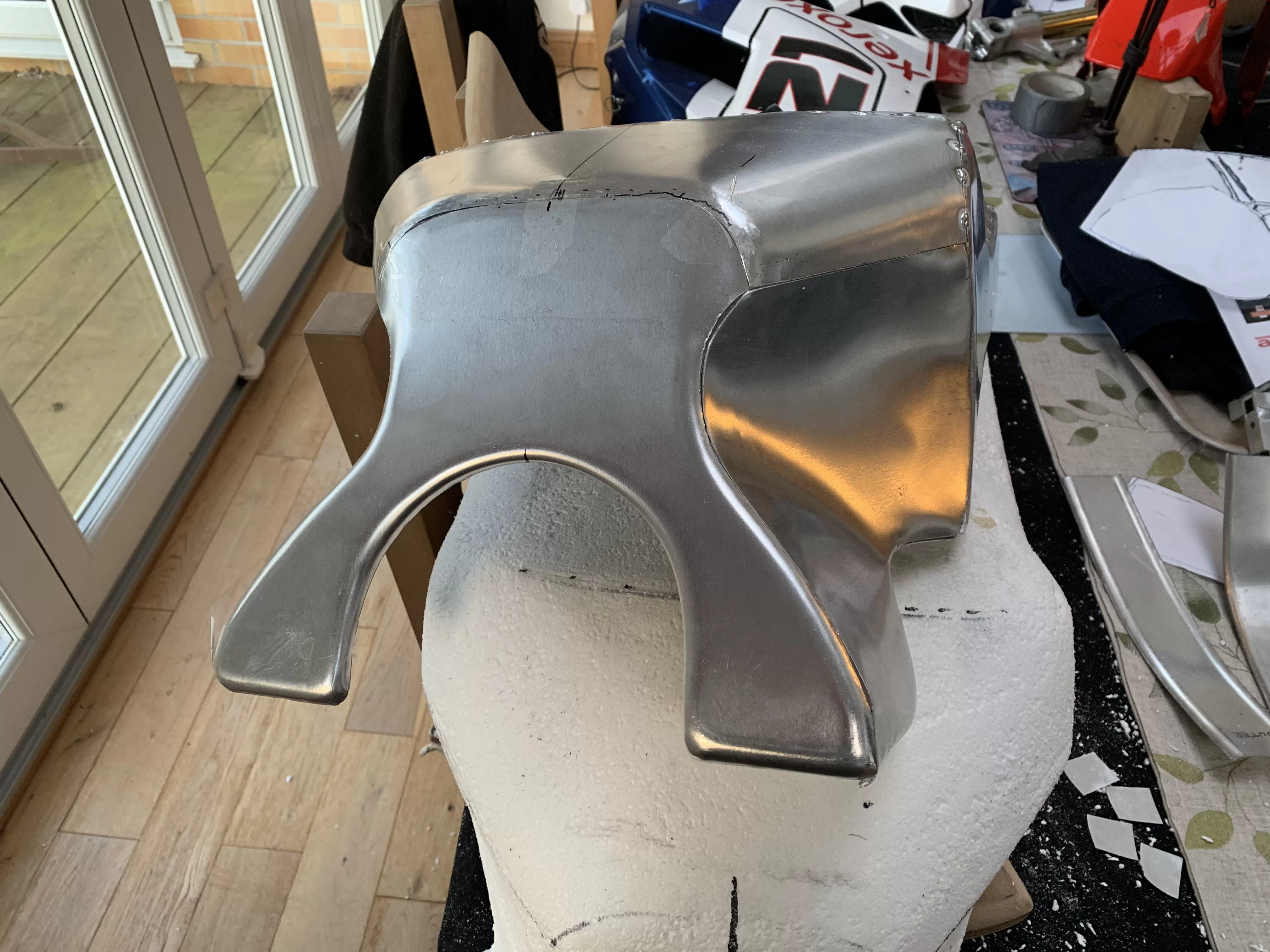

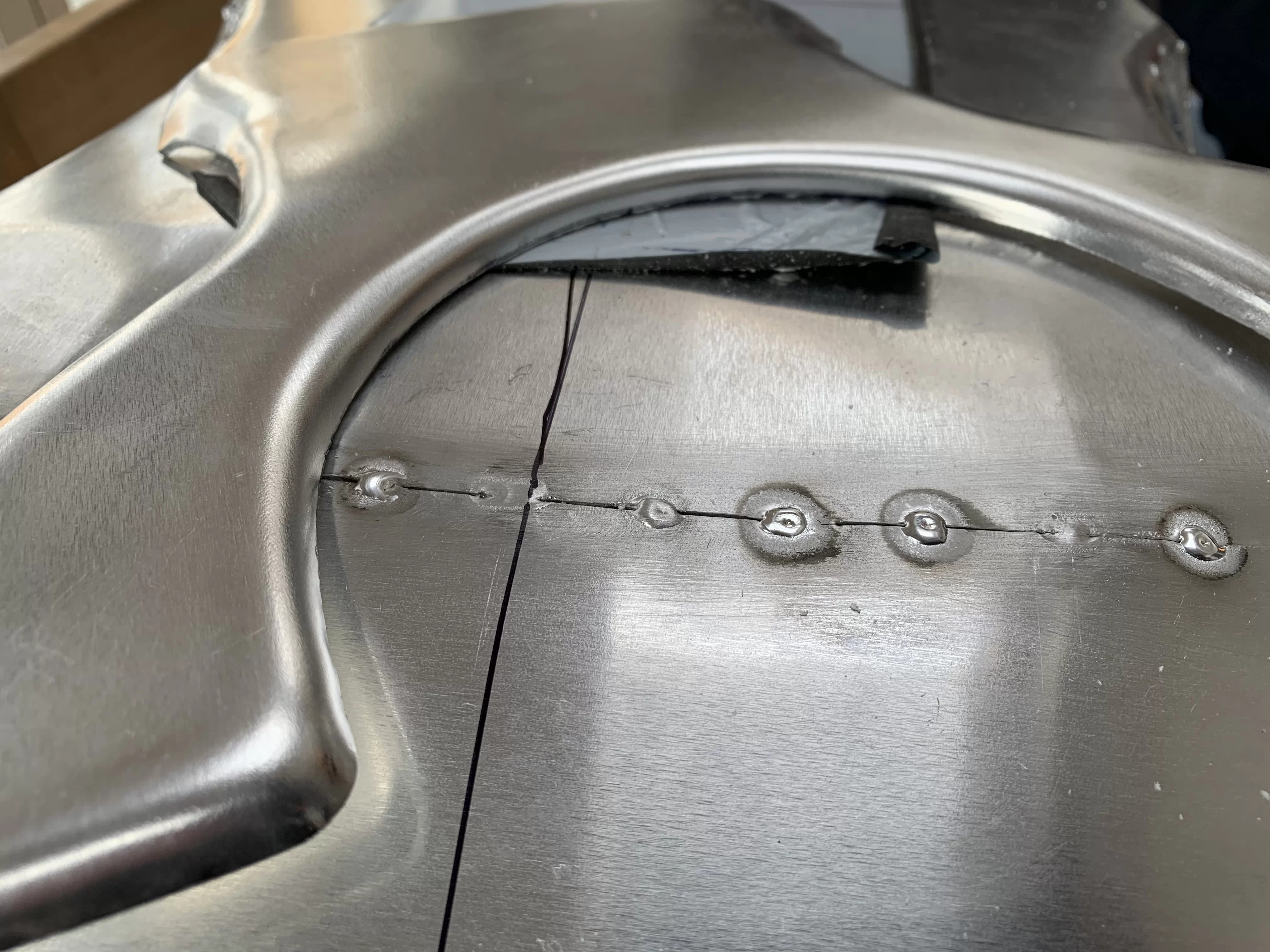

R/H Rear Quarter and Rear panels finished:

Kawasaki KR1000 Replica 132.webp

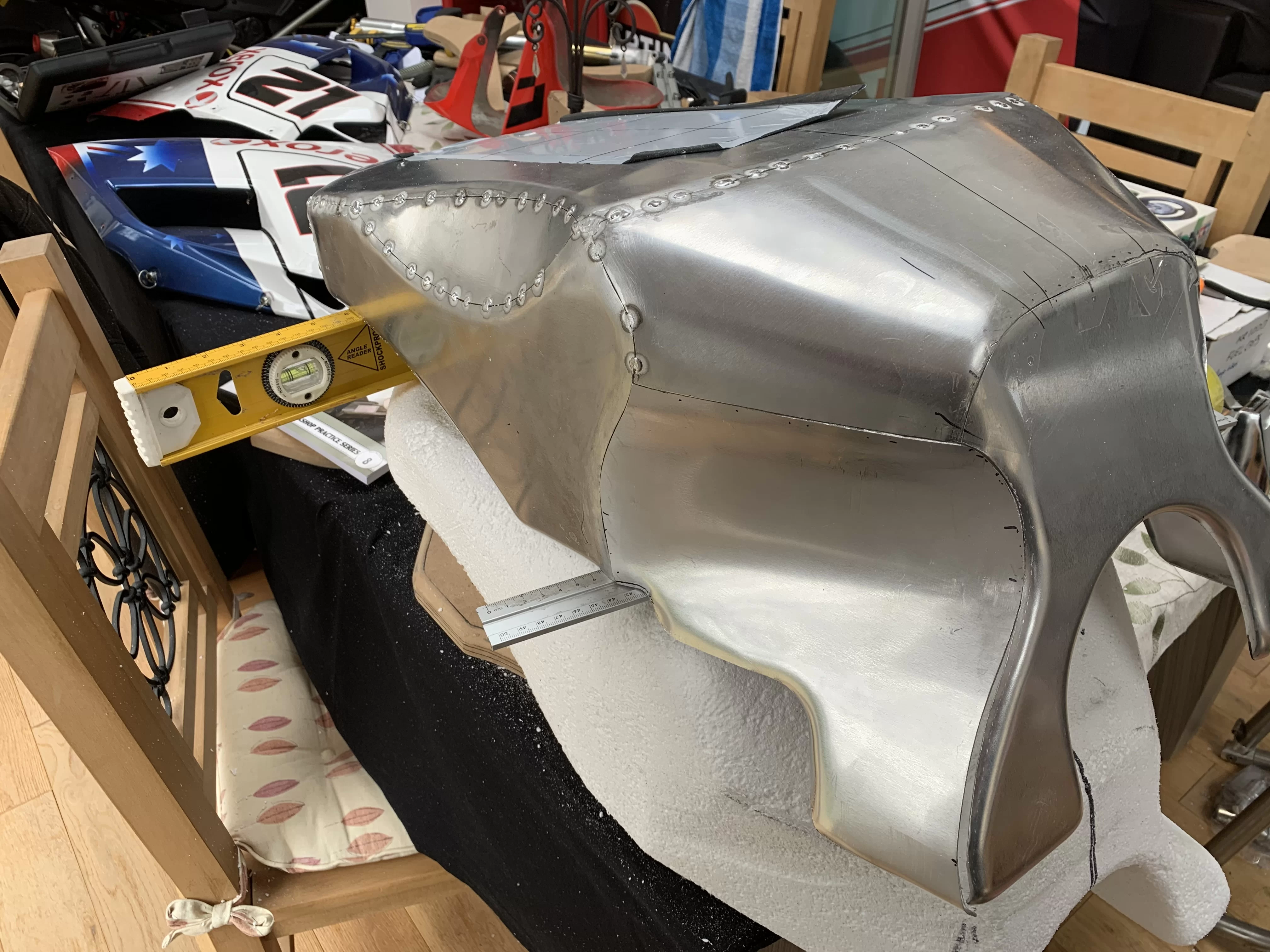

L/H Rear Quarter panel done...

Kawasaki KR1000 Replica 133.webp


Detail - Chad shouts at me if I have gaps :oops:

Kawasaki KR1000 Replica 134.webp

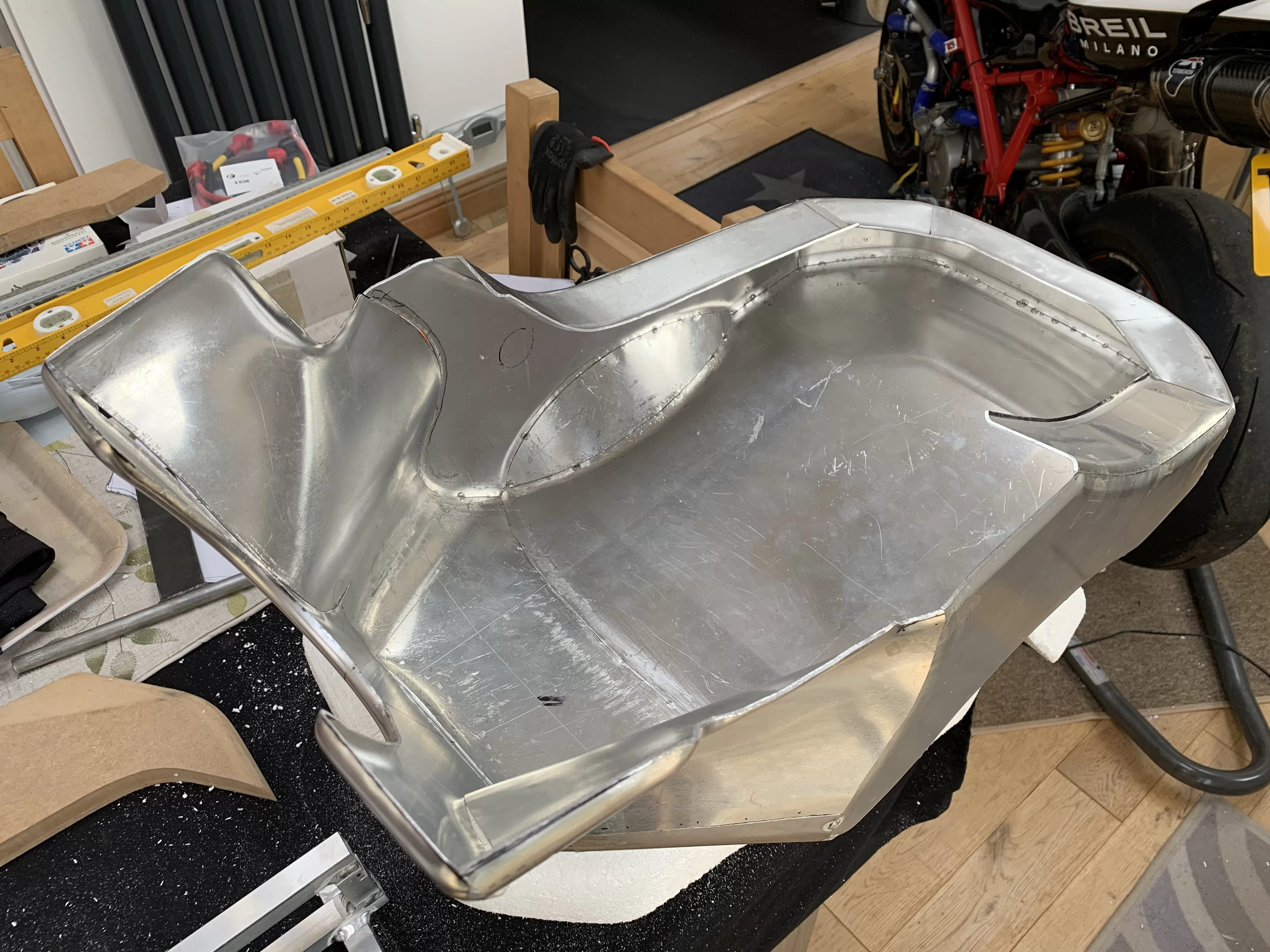

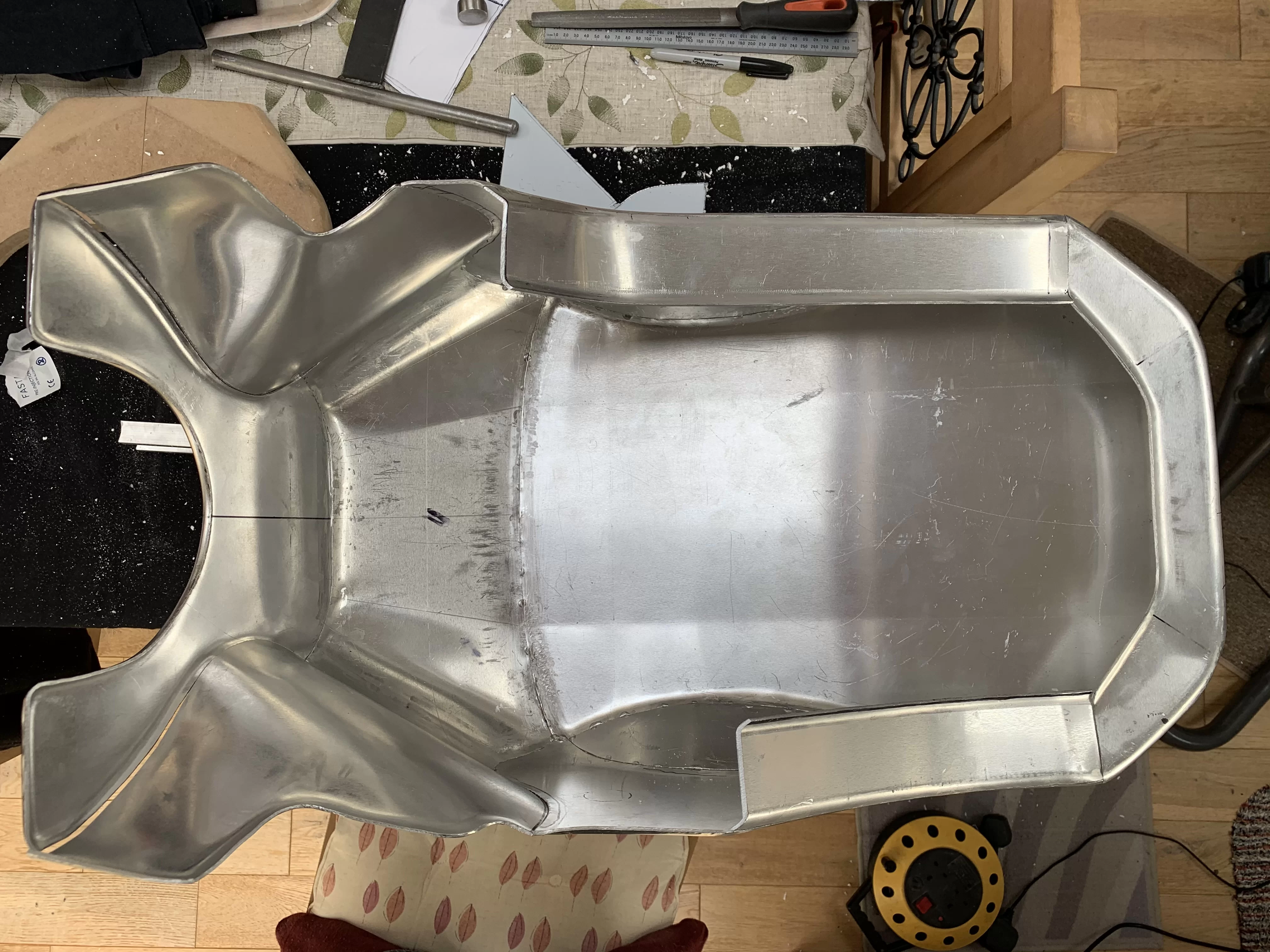

First 3 underside panels completed...

Kawasaki KR1000 Replica 135.webp


Kawasaki KR1000 Replica 136.webp

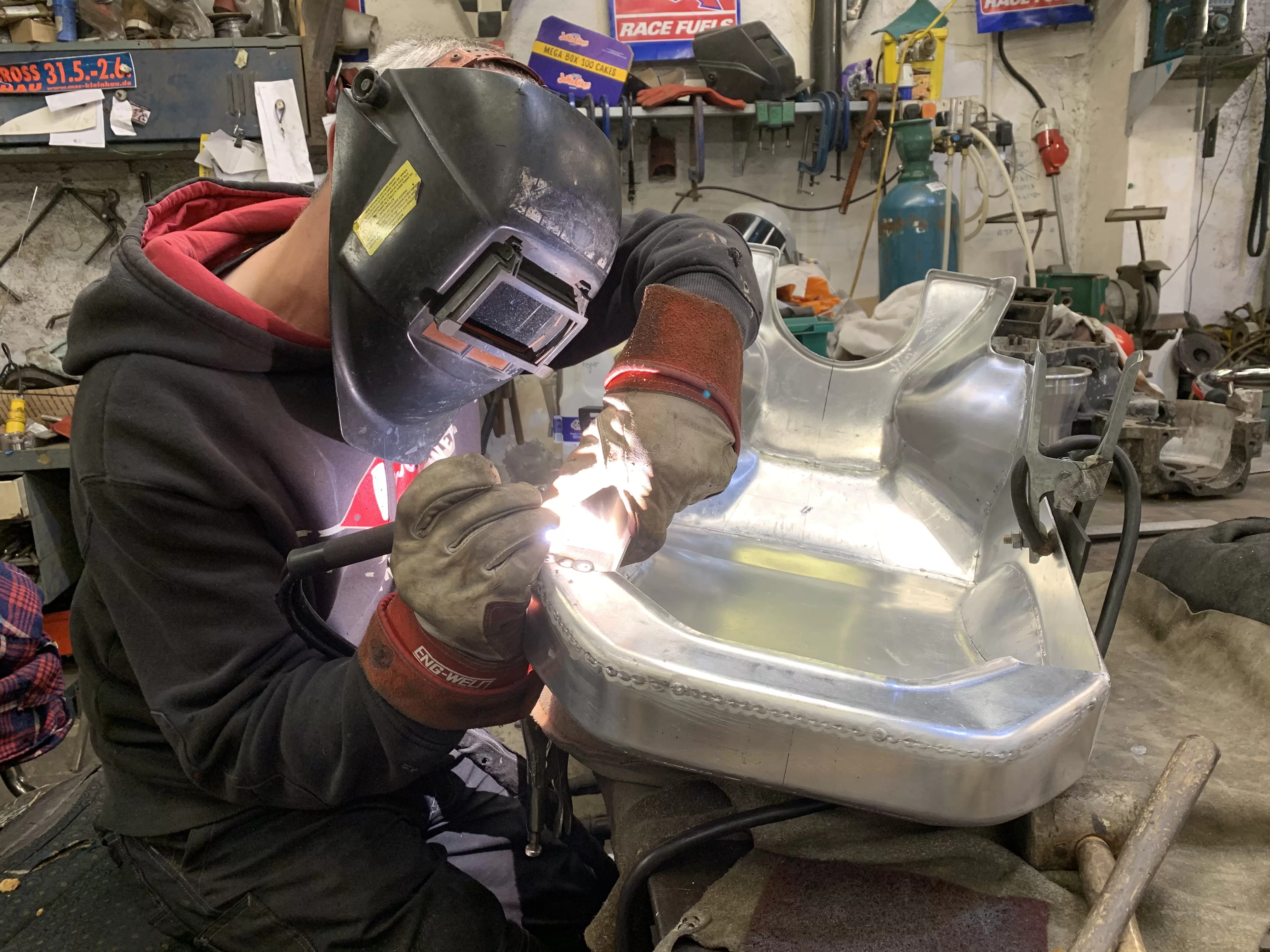

Back for Stage 3 tacking and the commencement of the welds:

Kawasaki KR1000 Replica 137.webp

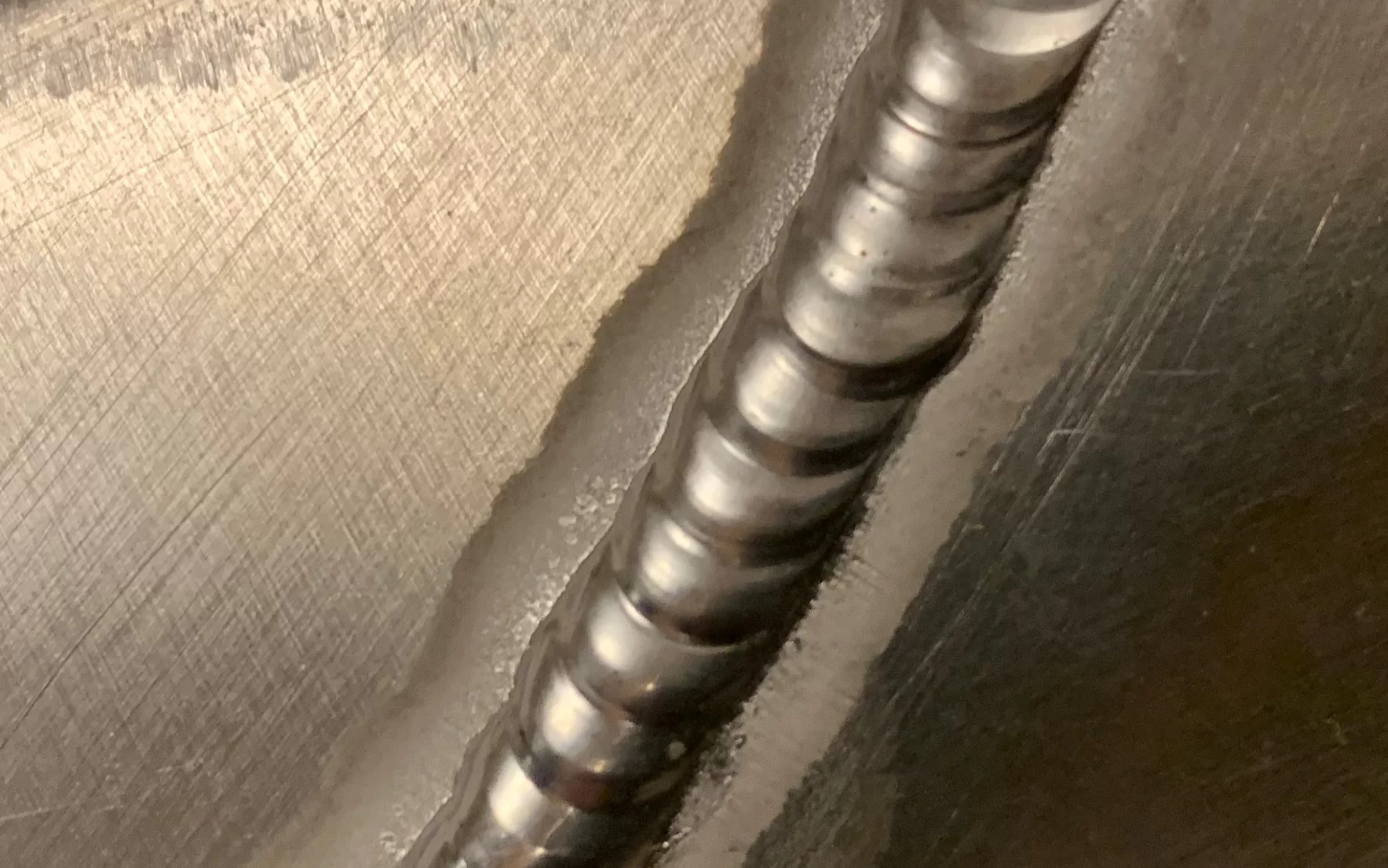

Weld detail - pity they will be flattened off and painted :unsure:

Kawasaki KR1000 Replica 138.webp


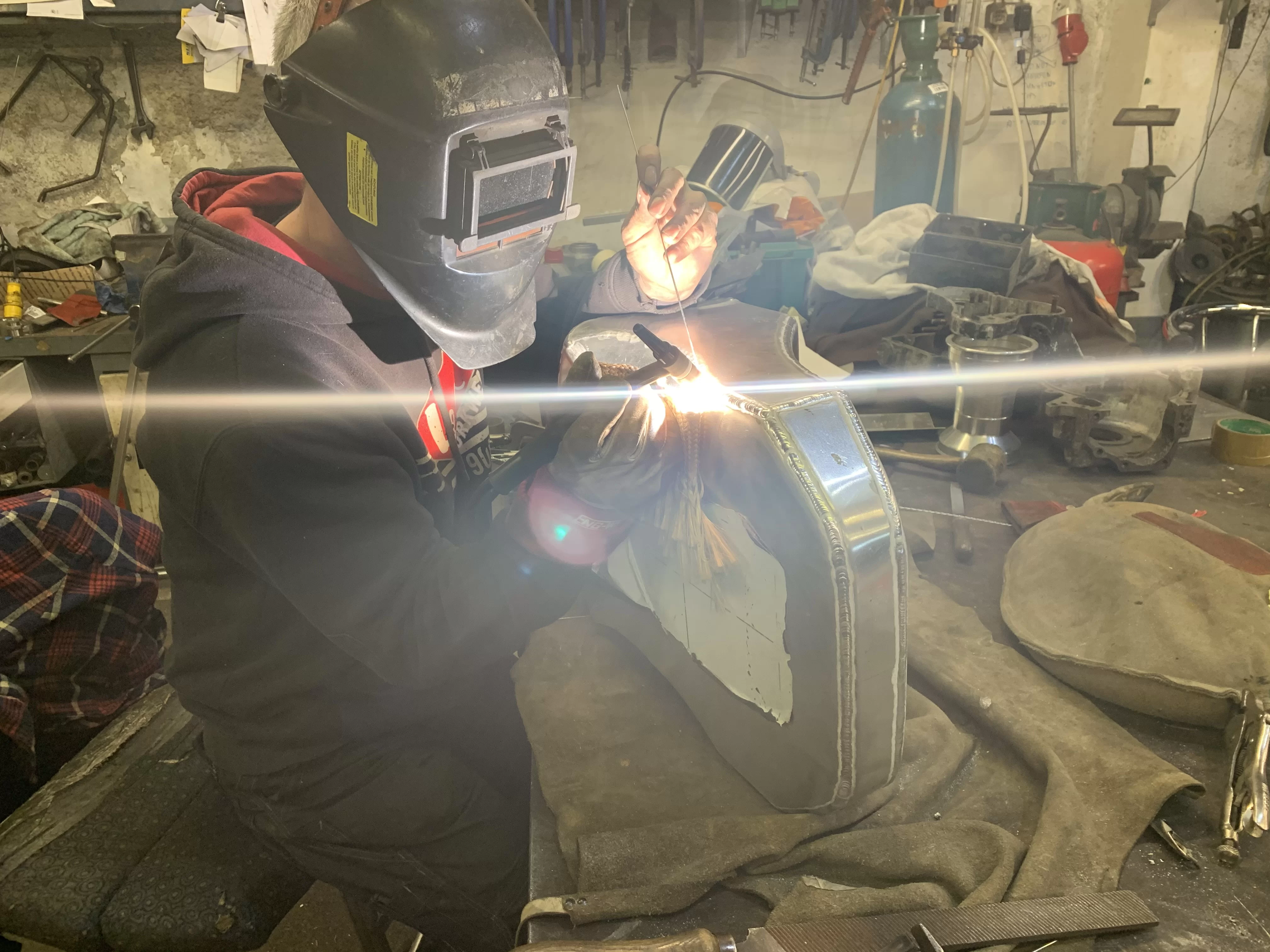

Chad finishing off the all the top panel welds:

Kawasaki KR1000 Replica 139.webp

Fuel tank, the last leg...

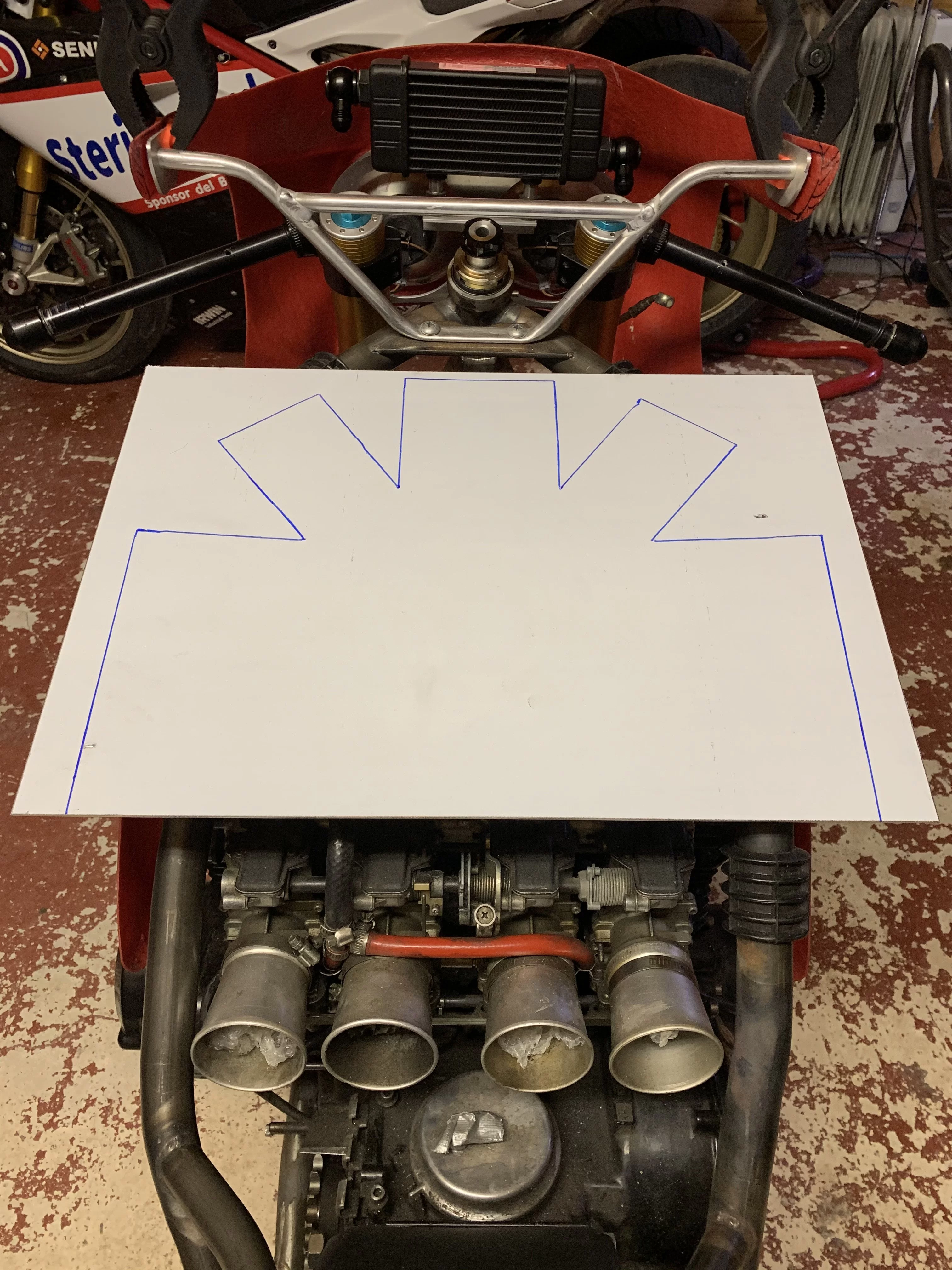

Lower front marked out:


Kawasaki KR1000 Prototype 140.webp

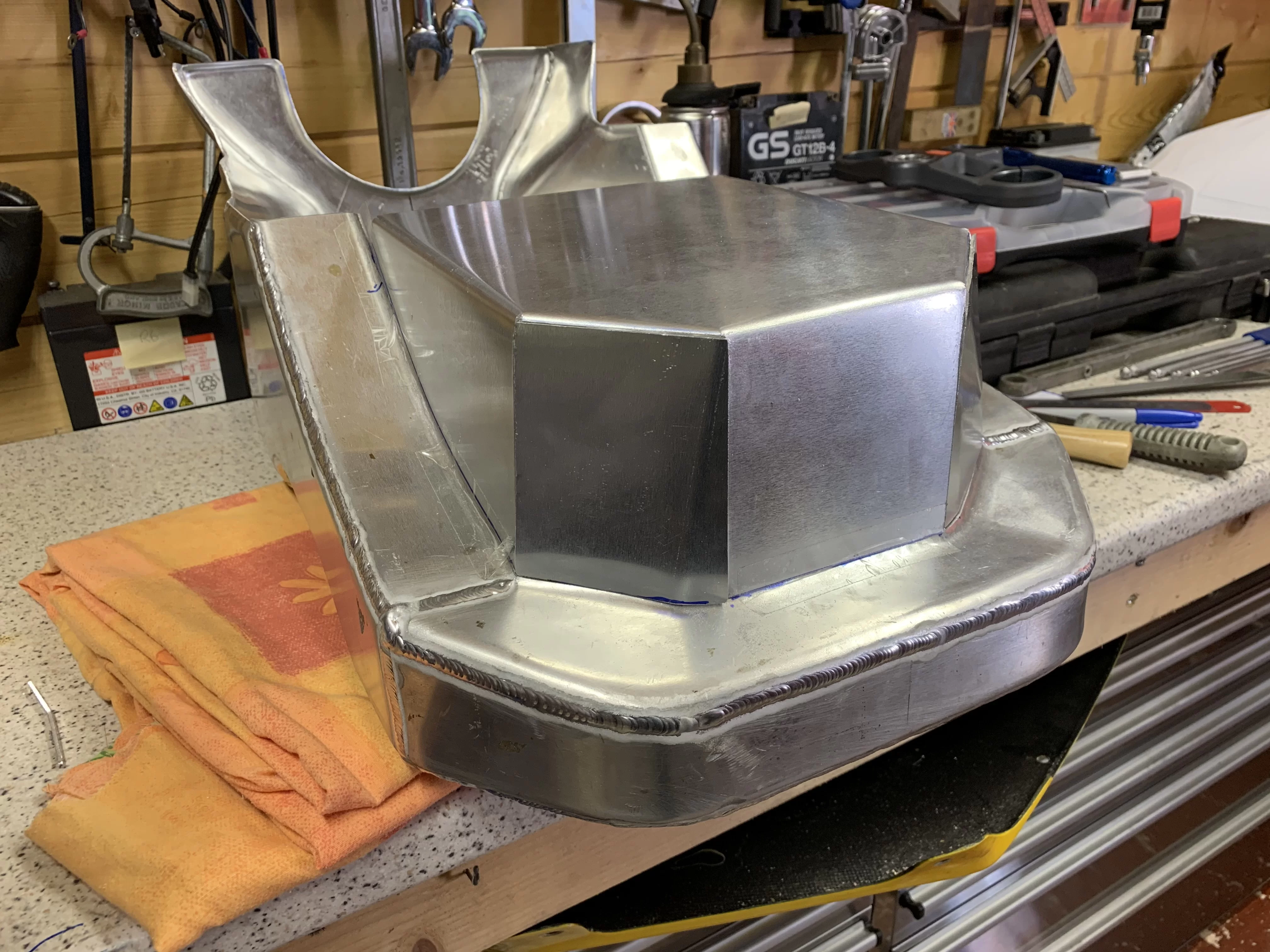

Folded and in position:

Kawasaki KR1000 Prototype 141.webp

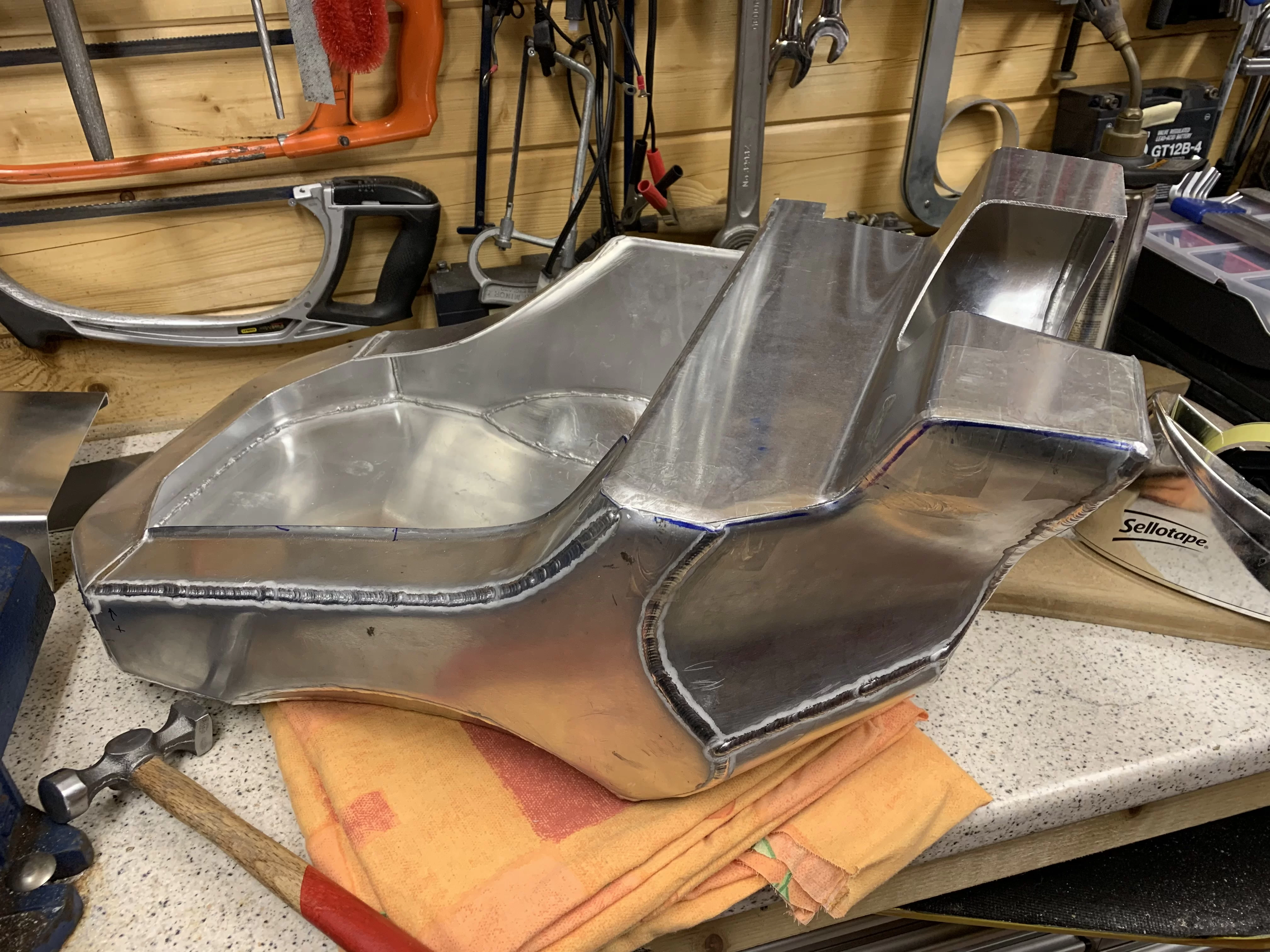

Lower rear panel - this was the trickiest panel due to the double curvature, with the tank being a different shape on each side - I had to guess as close as possible and sacrifice a sheet of aluminium as a test piece to see where it ended up, then adjust and re-fold a final sheet.

Kawasaki KR1000 Prototype 142.webp

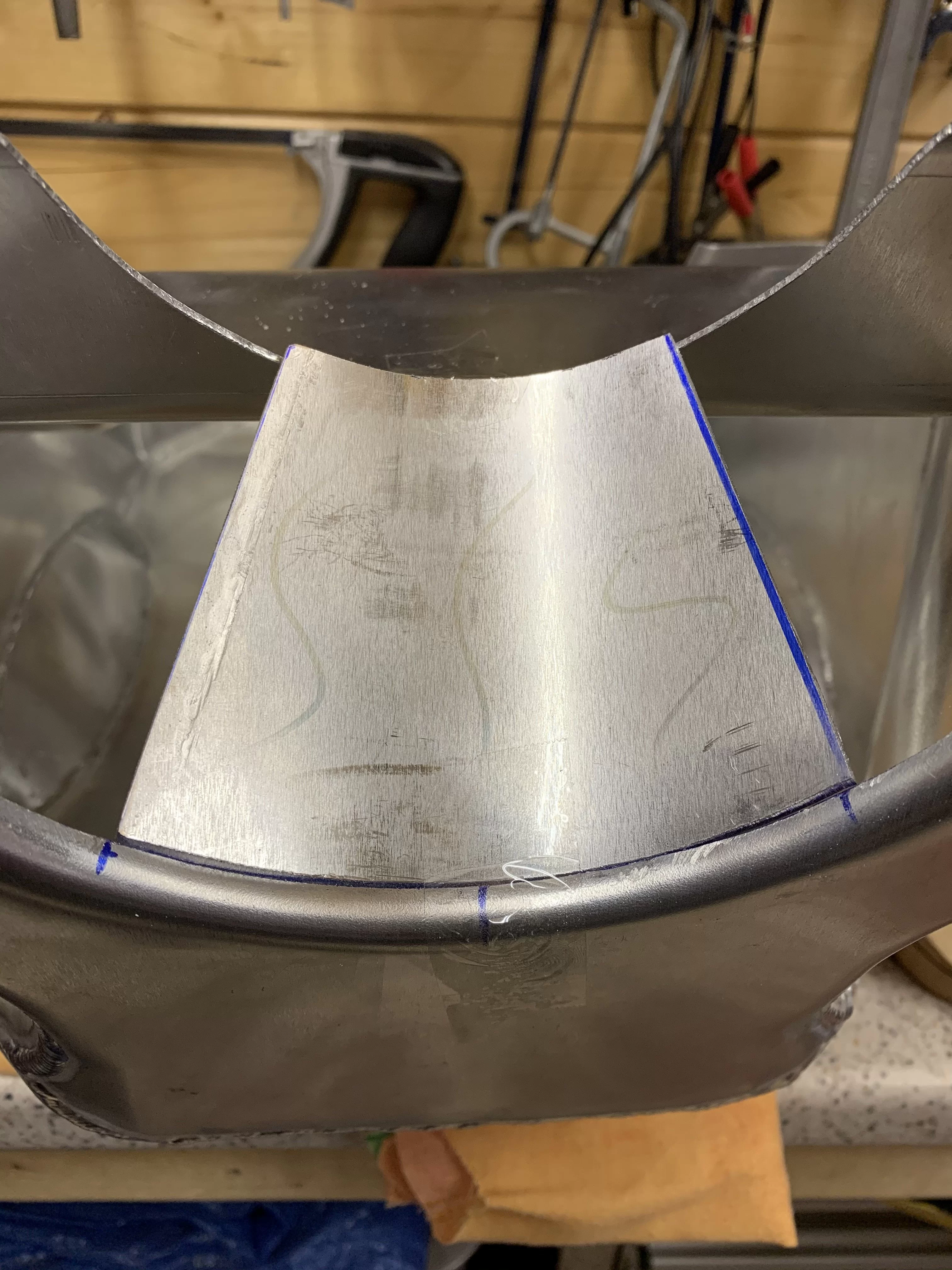

The rear curved section was easier (for me at least) to do in 3 pieces, centre piece first:

Kawasaki KR1000 Prototype 143.webp

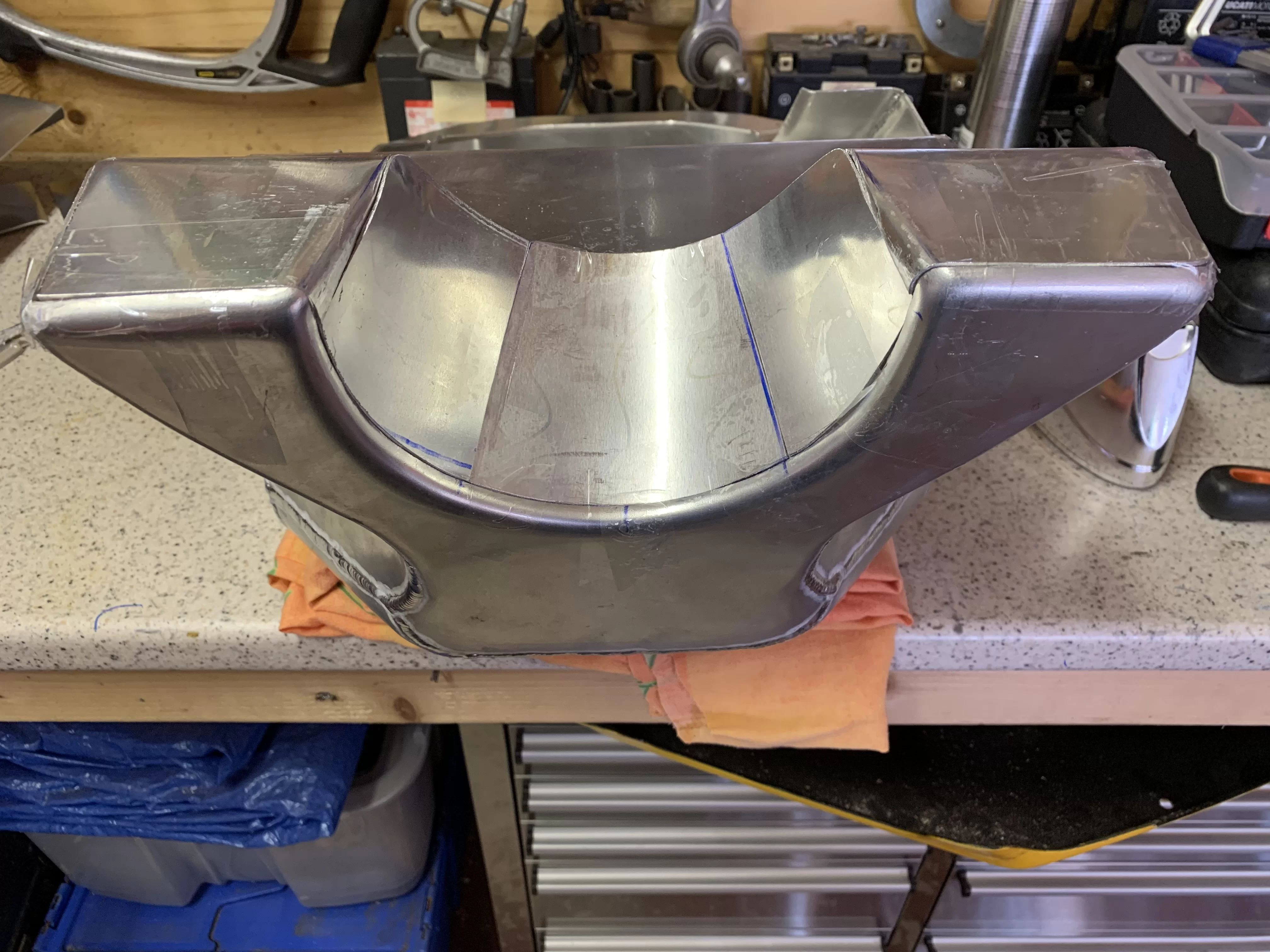

Then the 2 side pieces:

Kawasaki KR1000 Prototype 144.webp

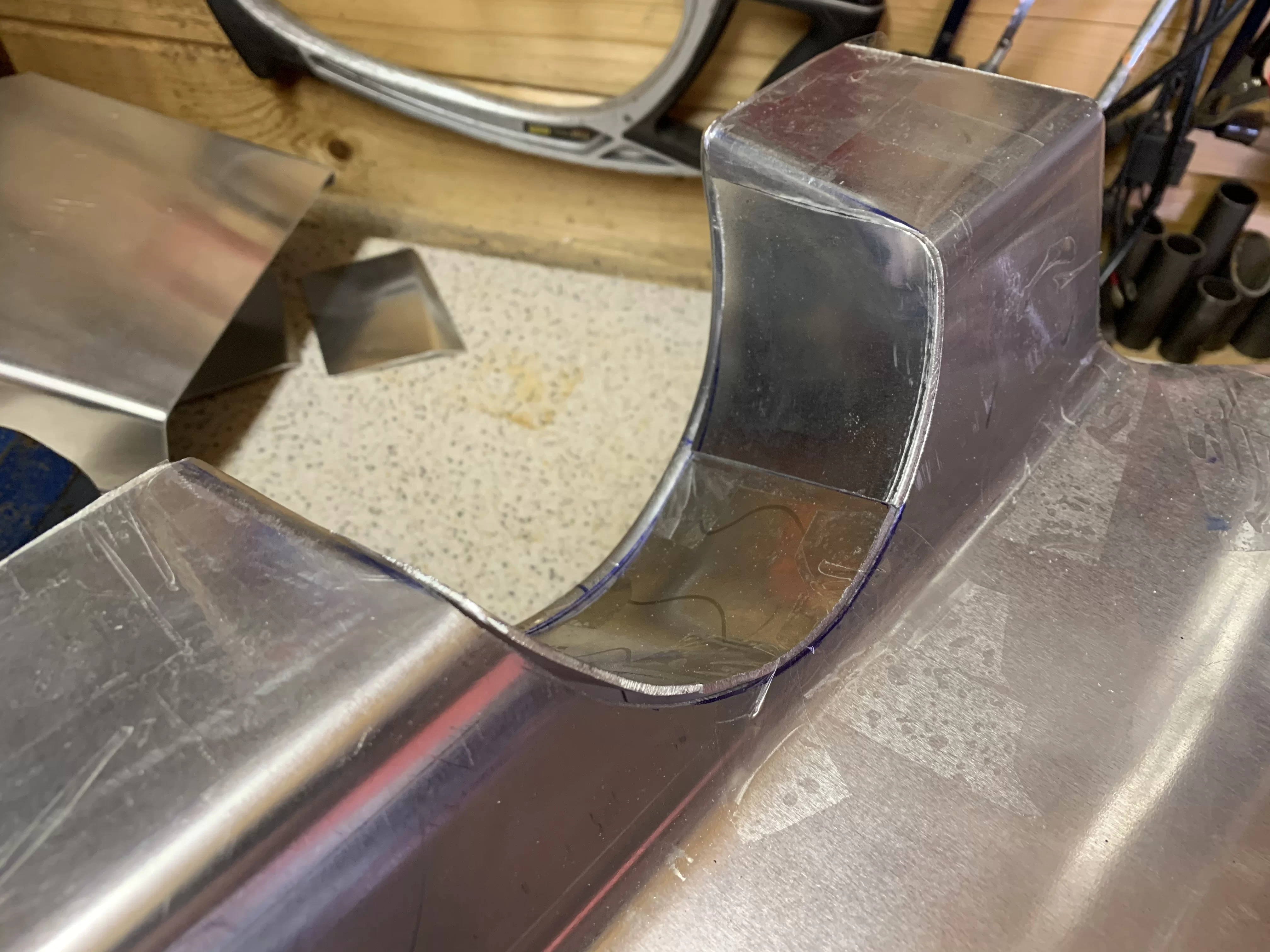

Finished and fitting snuggly...

Kawasaki KR1000 Prototype 145.webp

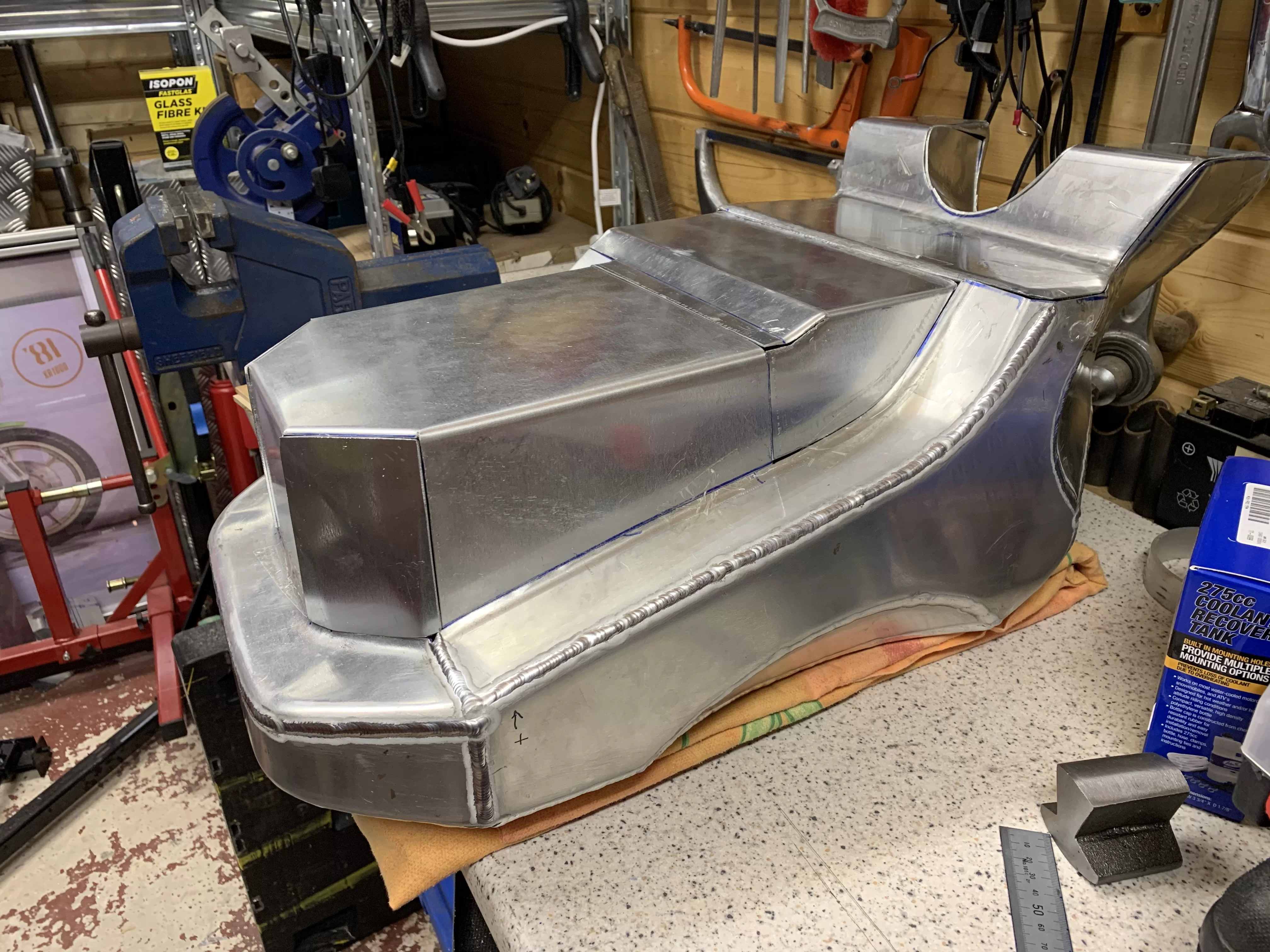

The final piece of the jigsaw - the centre section is in place!

Kawasaki KR1000 Prototype 146.webp

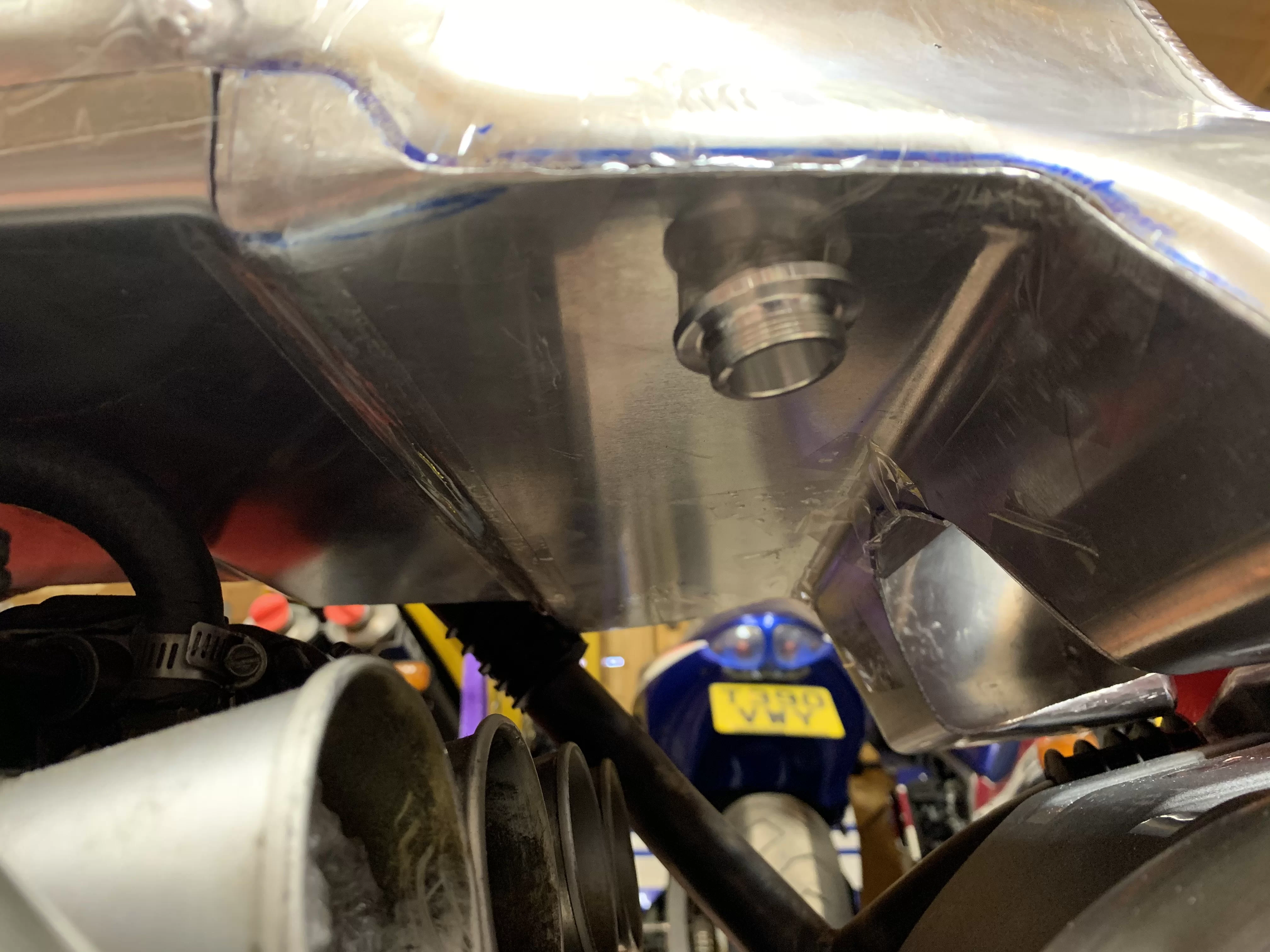

Pingel fuel tap adapter fitted ready to weld in...

Kawasaki KR1000 Prototype 147.webp

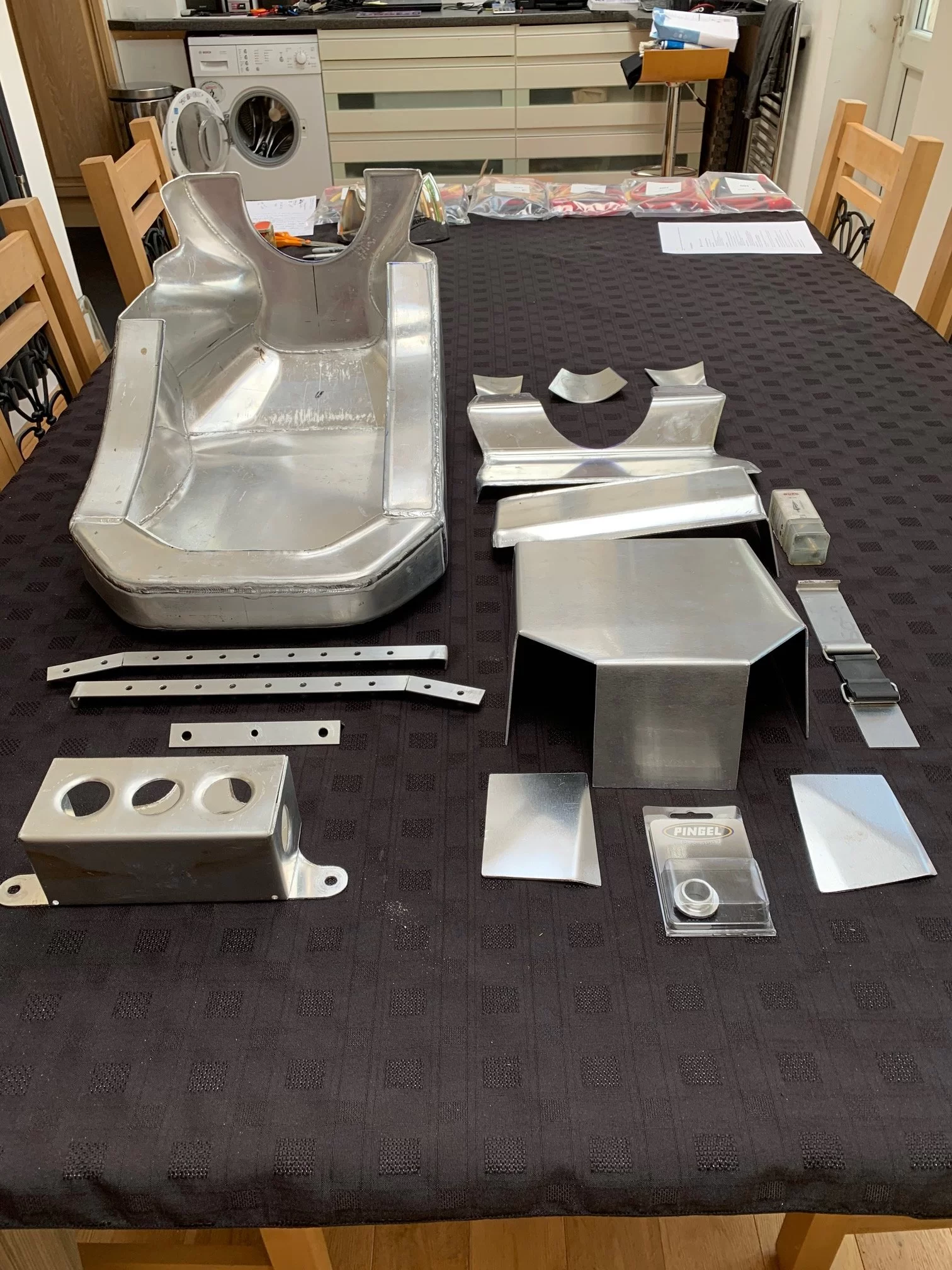

Time for a trip to Hull yet again - battery box and seat support ready for welding too...

Kawasaki KR1000 Prototype 148.webp

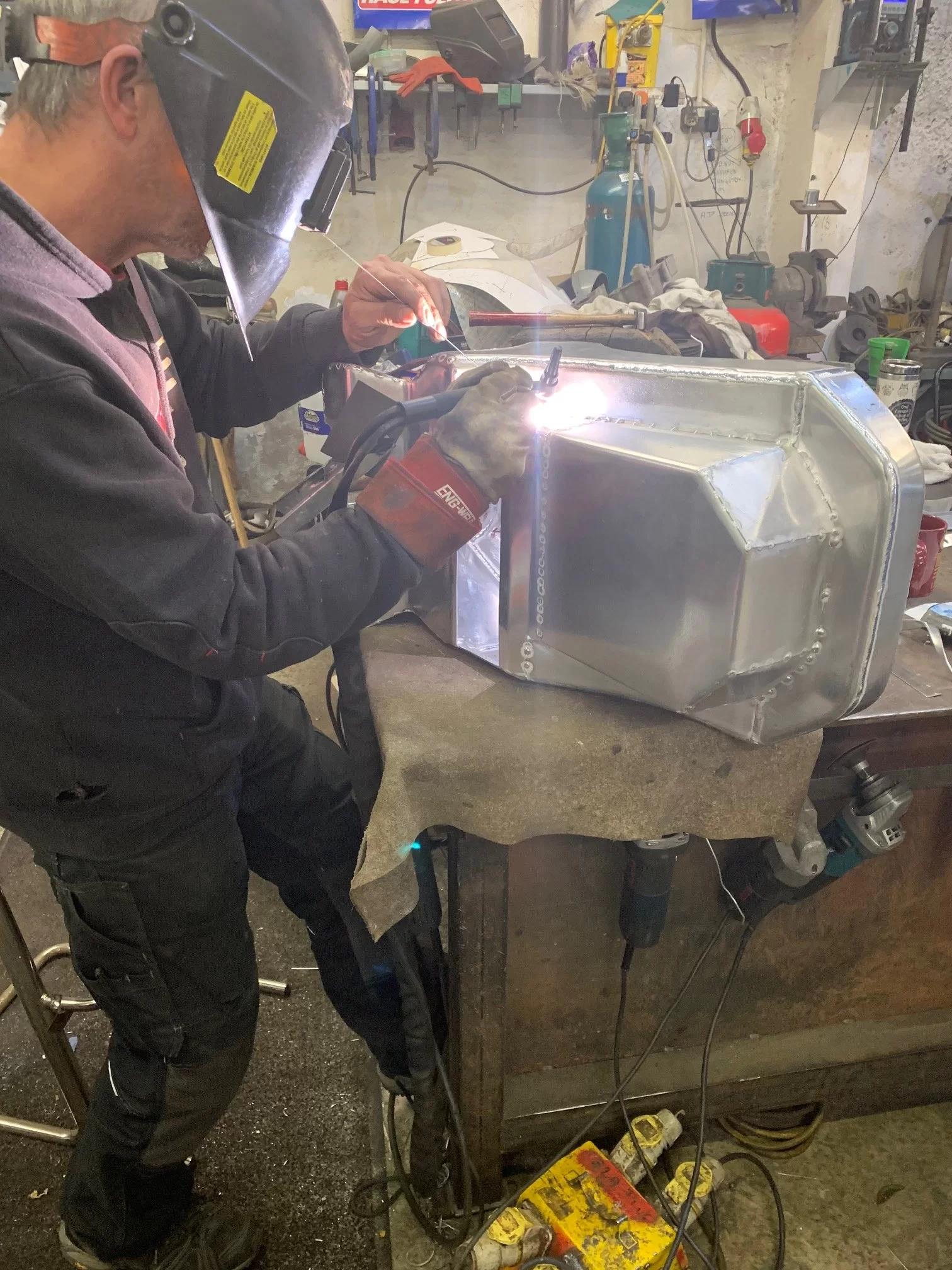

More magic taking place:

Kawasaki KR1000 Prototype 149.webp

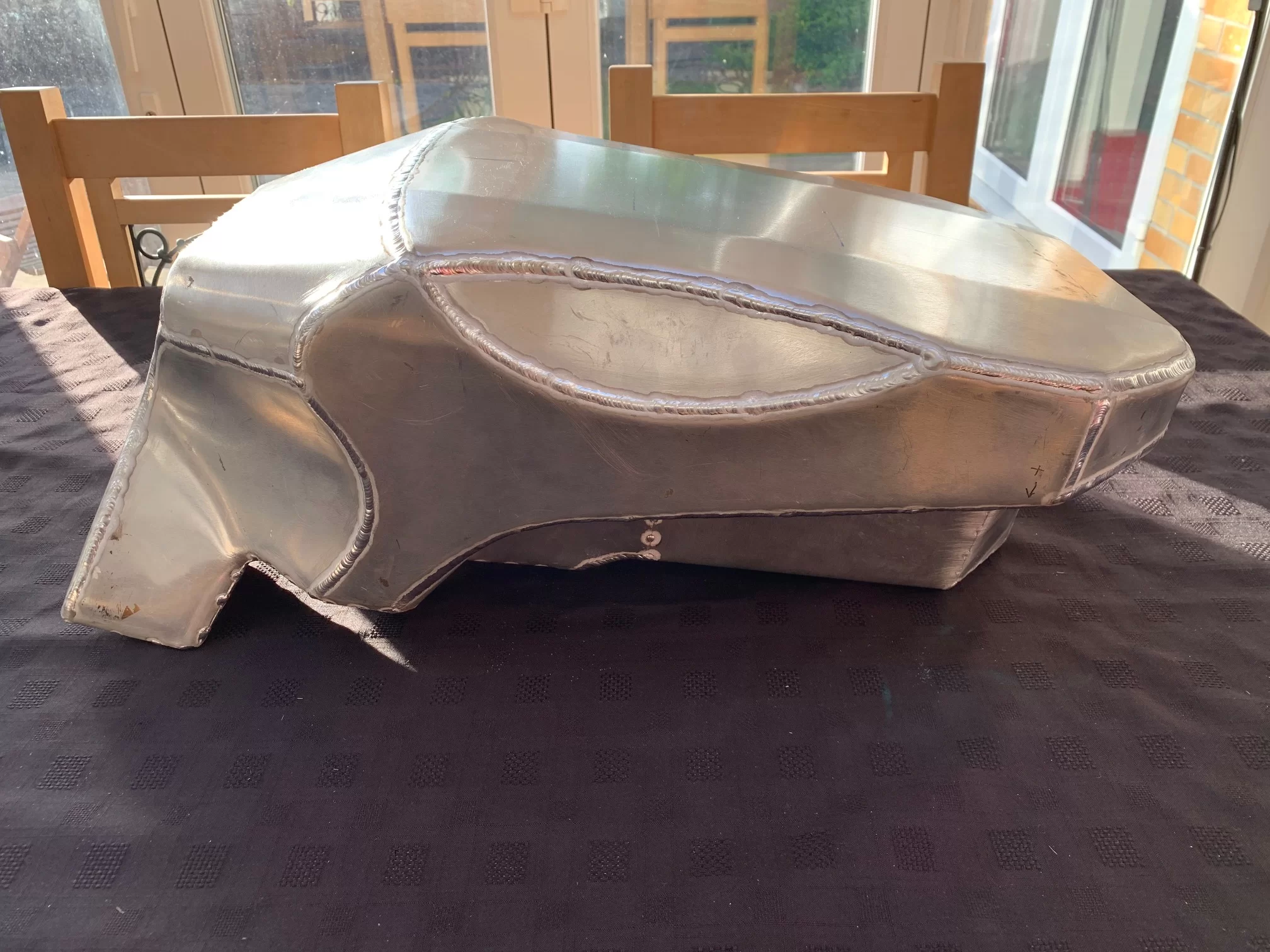

Tacked & then back home for final fitment checks to the frame:

Kawasaki KR1000 Prototype 150.webp


Kawasaki KR1000 Prototype 151.webp

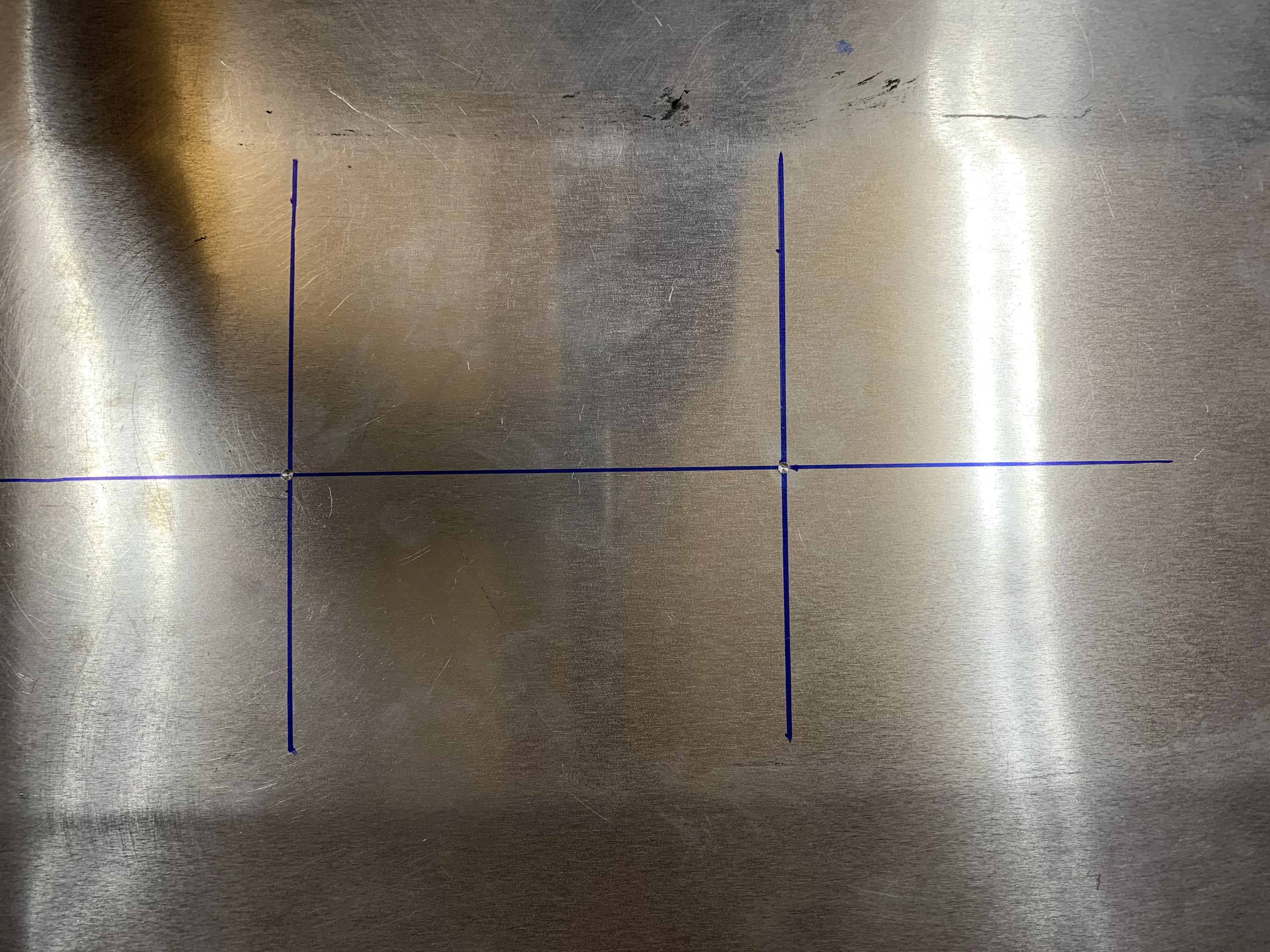

Fuel filler holes marked out and centre punched...

Kawasaki KR1000 Prototype 152.webp

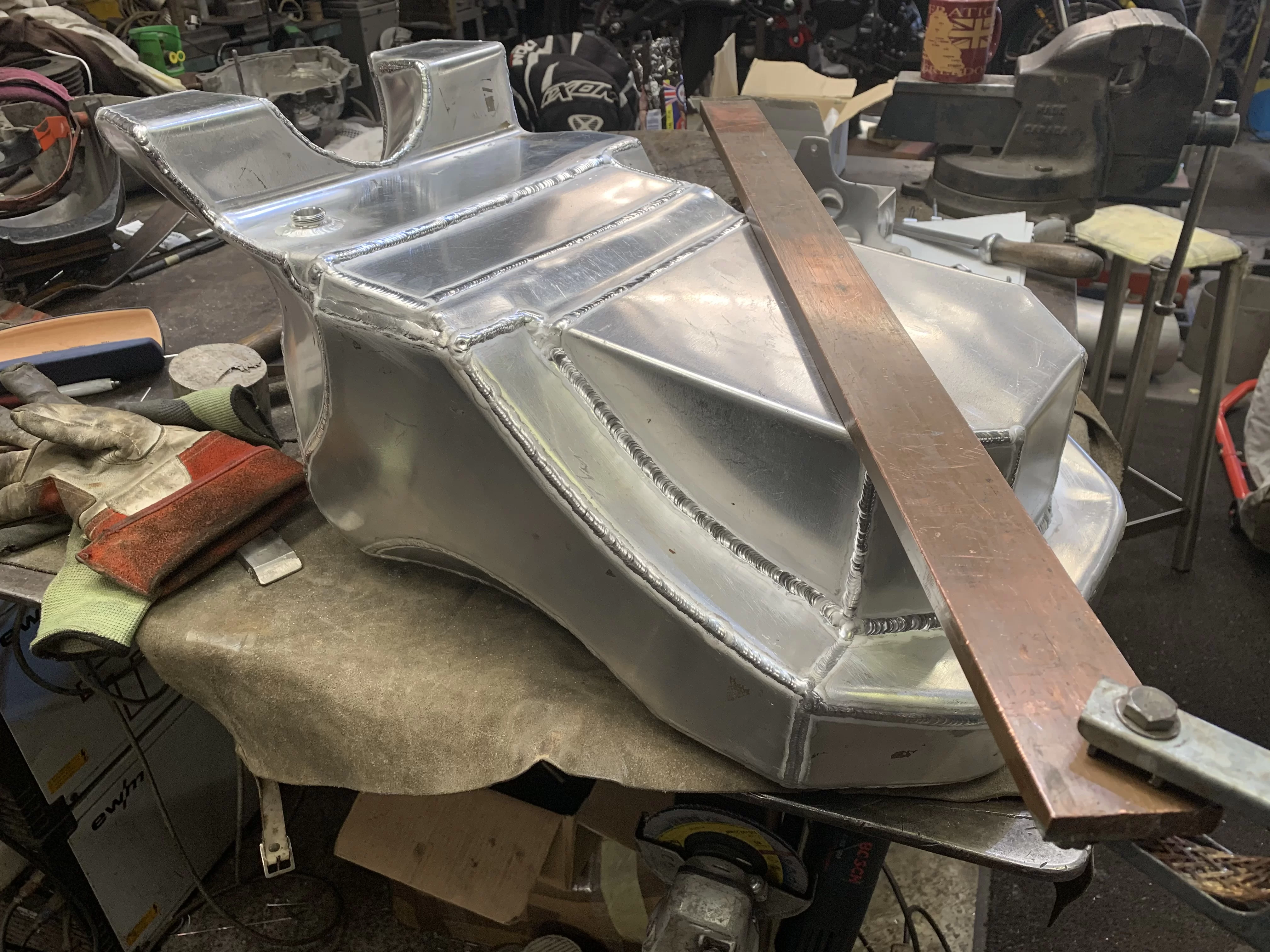

And back to Chads for final welding:

Kawasaki KR1000 Prototype 153.webp


Rear tank strap hook in place:

Kawasaki KR1000 Prototype 154.webp

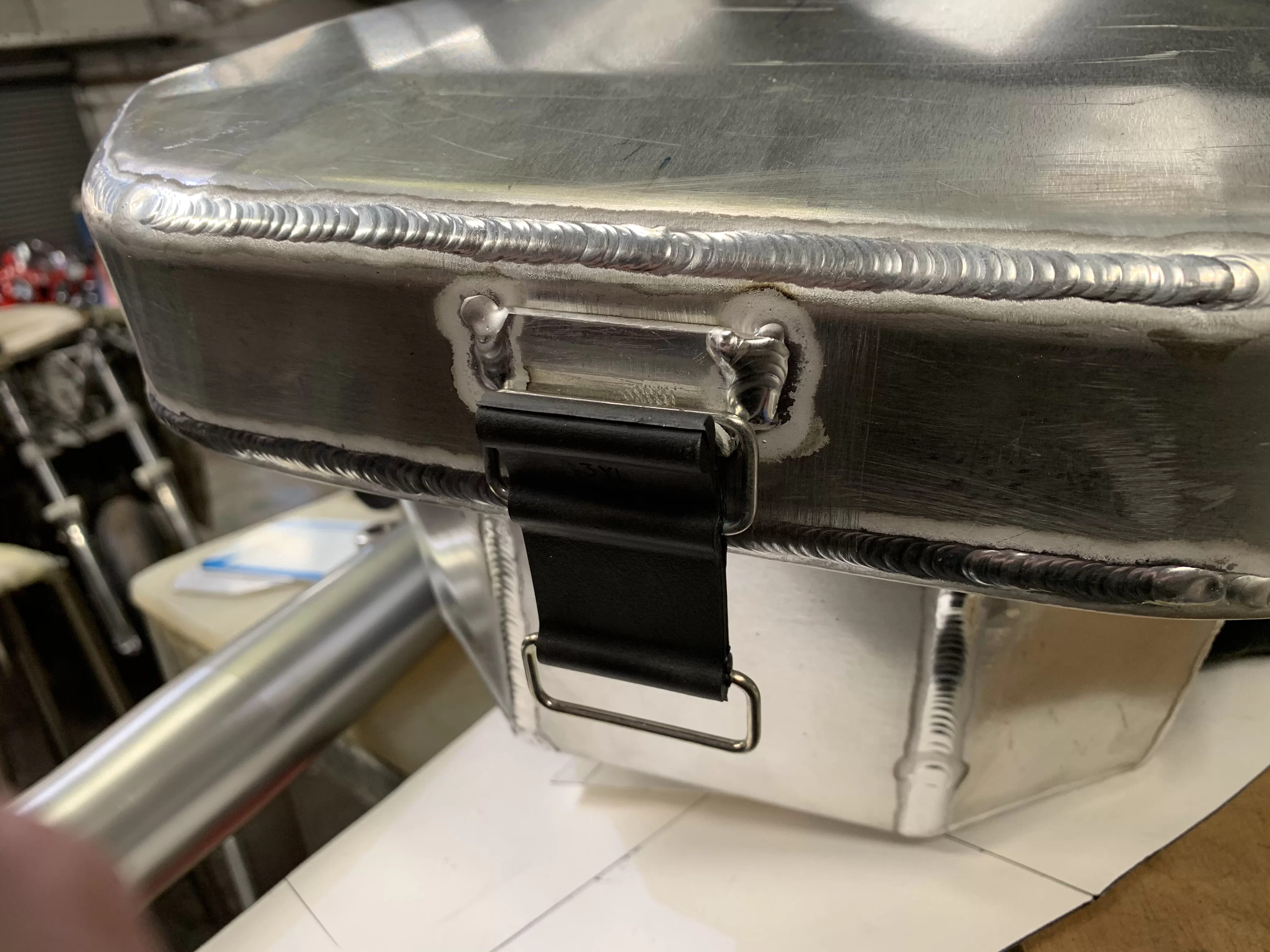

And the front:

Kawasaki KR1000 Prototype 155.webp

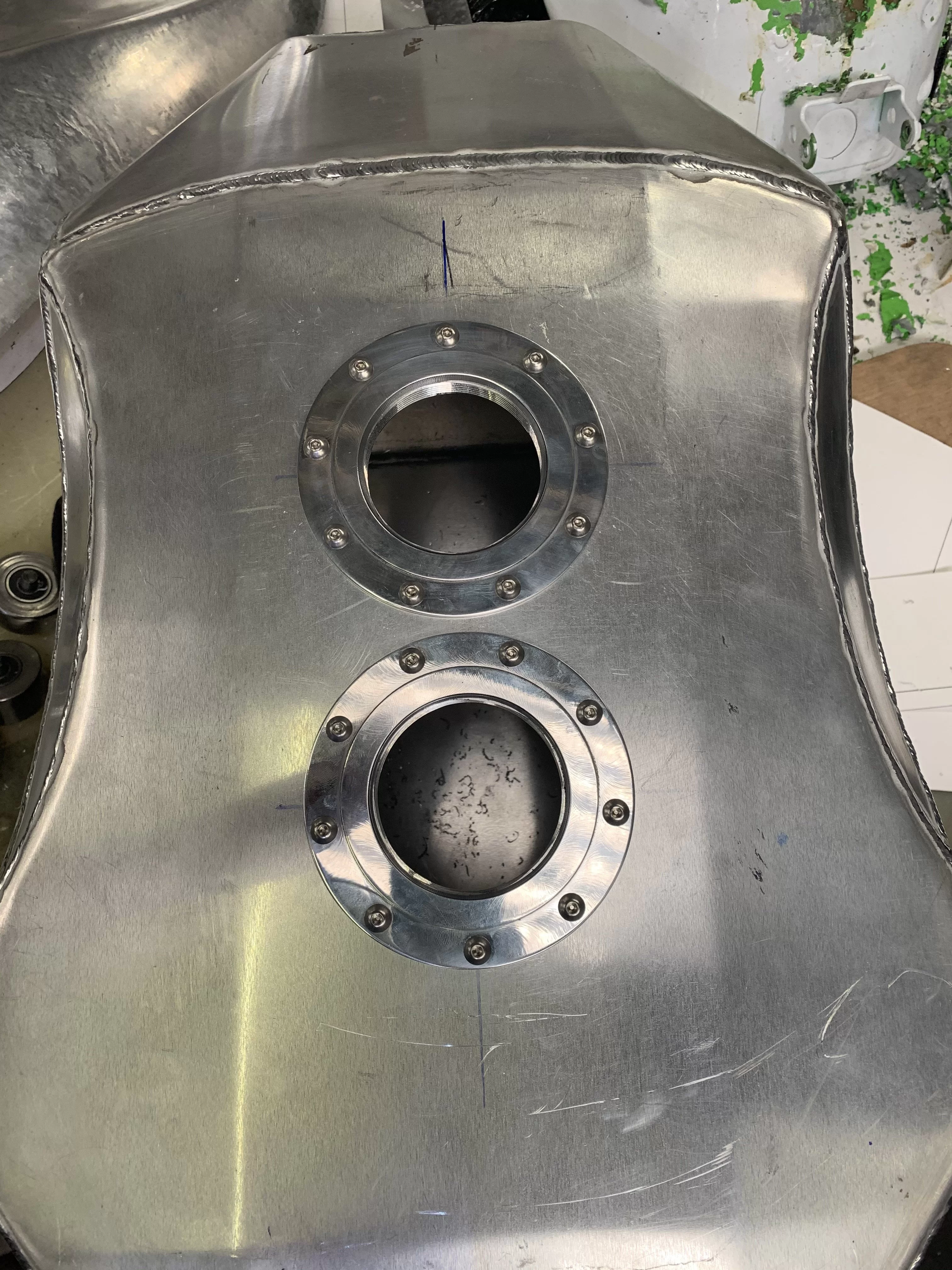

Fuel caps sat in place:

Kawasaki KR1000 Prototype 156.webp

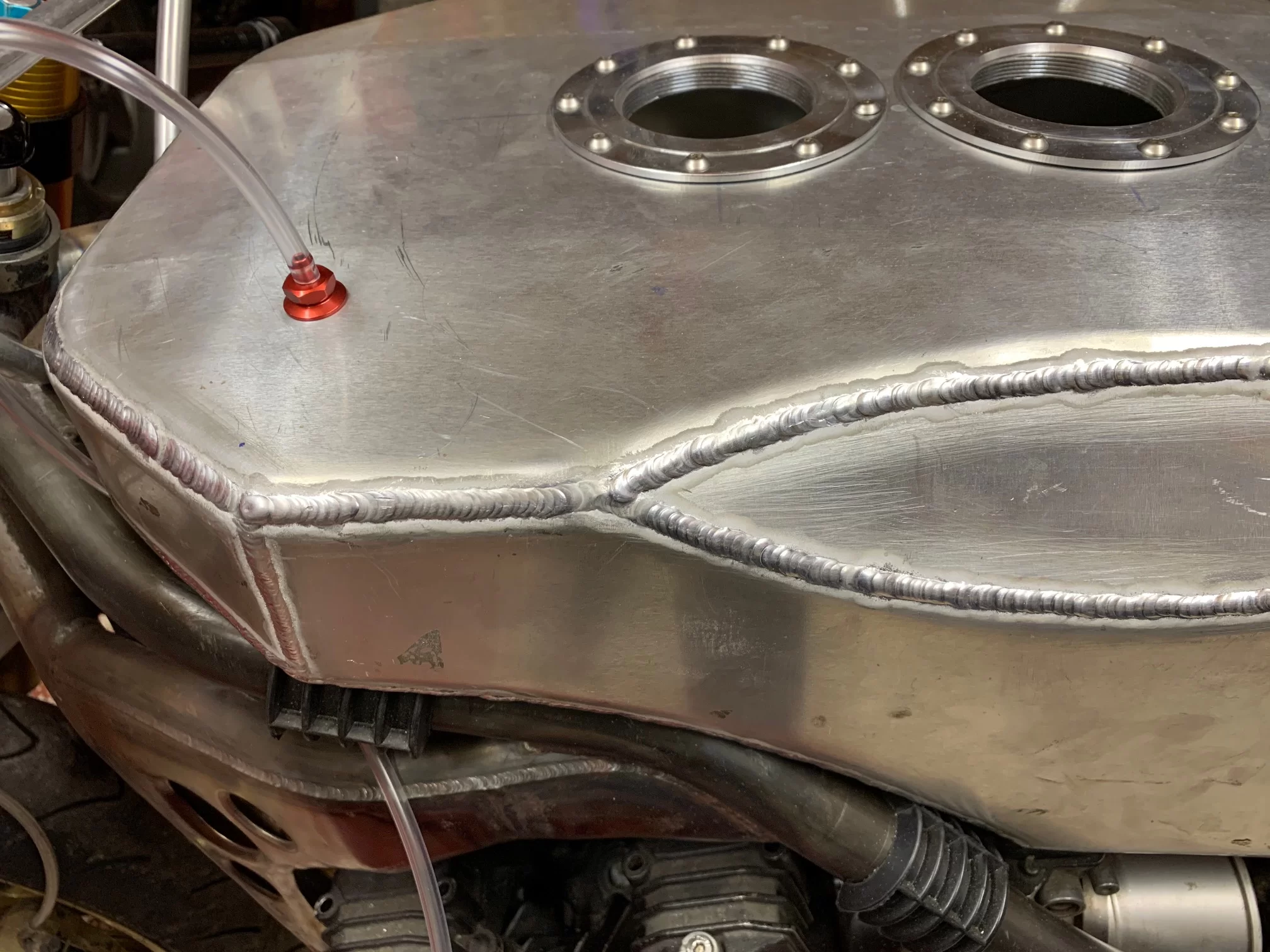

Breather done - the tat anodising will probably be removed though :oops:

Kawasaki KR1000 Prototype 157.webp

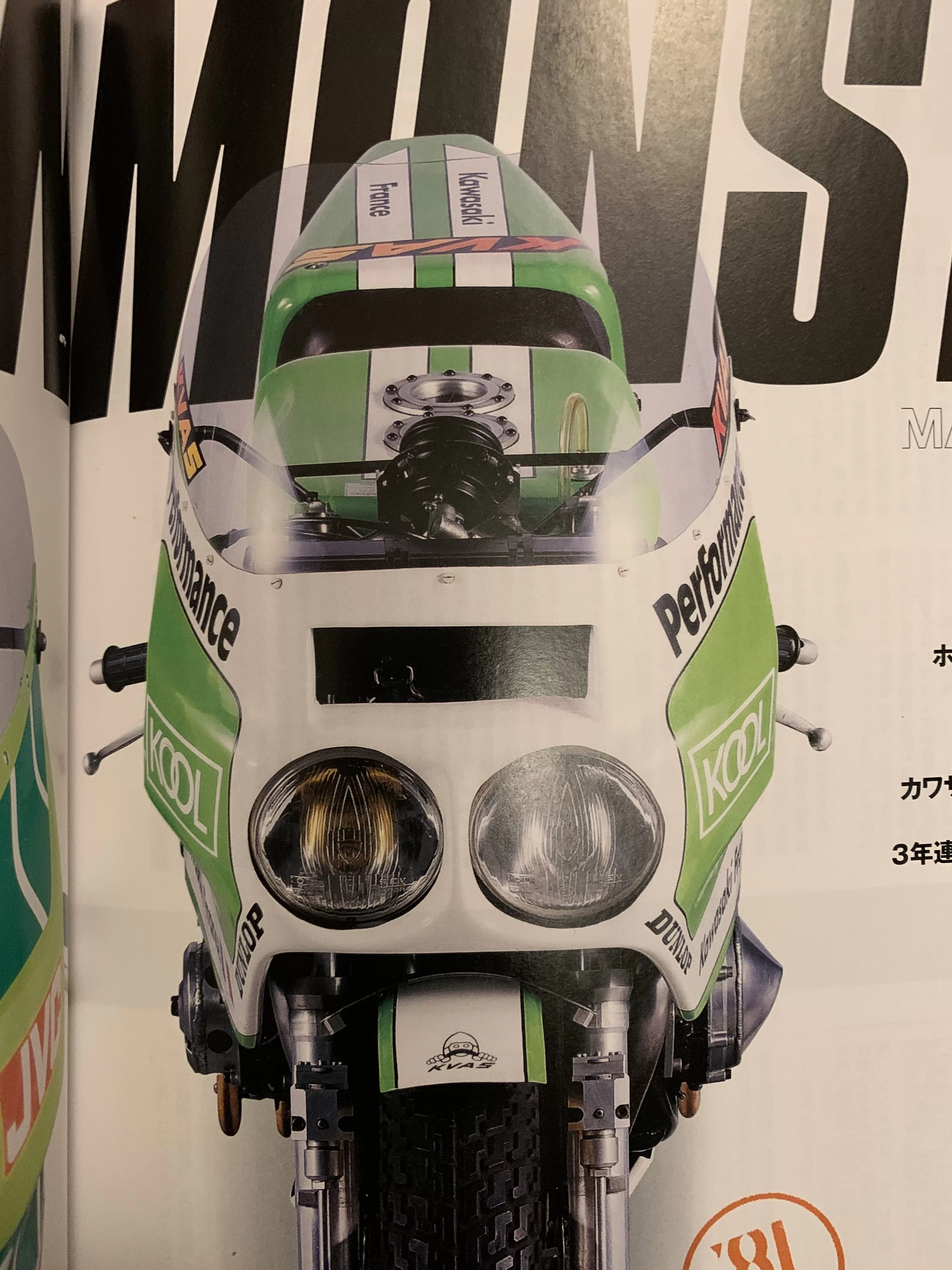

One thing I didn't replicate was the wonky fitment / alignment of the bodywork :unsure:

Kawasaki KR1000 Prototype 158.webp

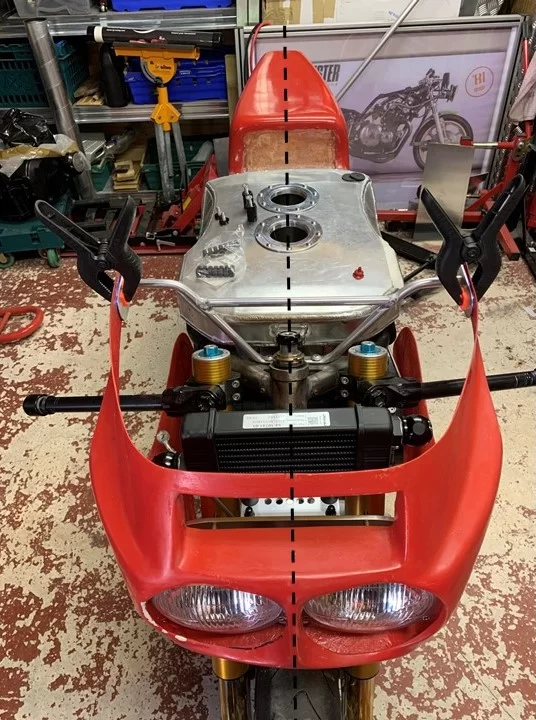

And managed to get it nicely in line :)

Kawasaki KR1000 Prototype 159.webp


That was a huge hurdle over for me with the build - thanks to furlough it was finished in a handful of months rather than years 👀

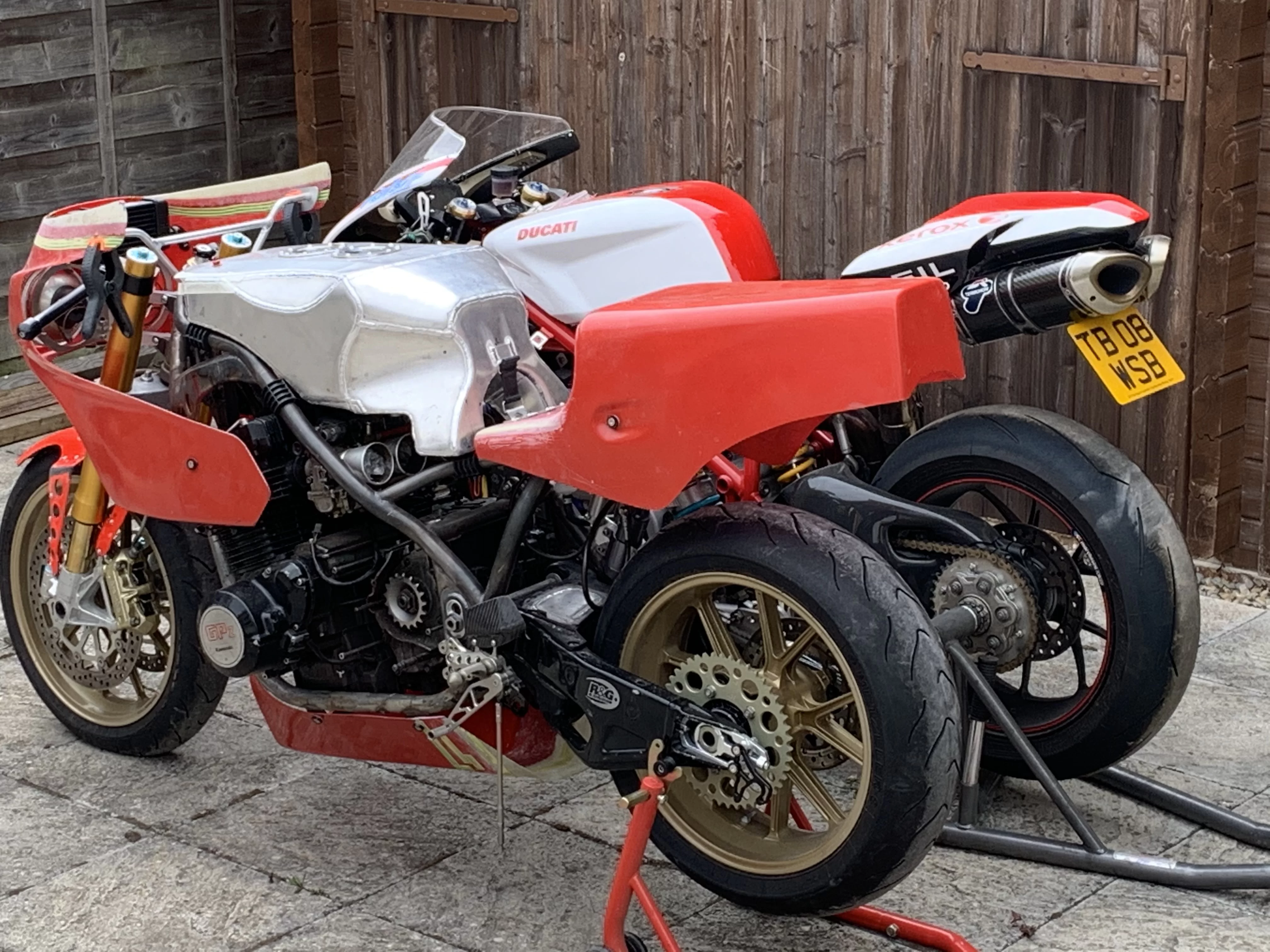

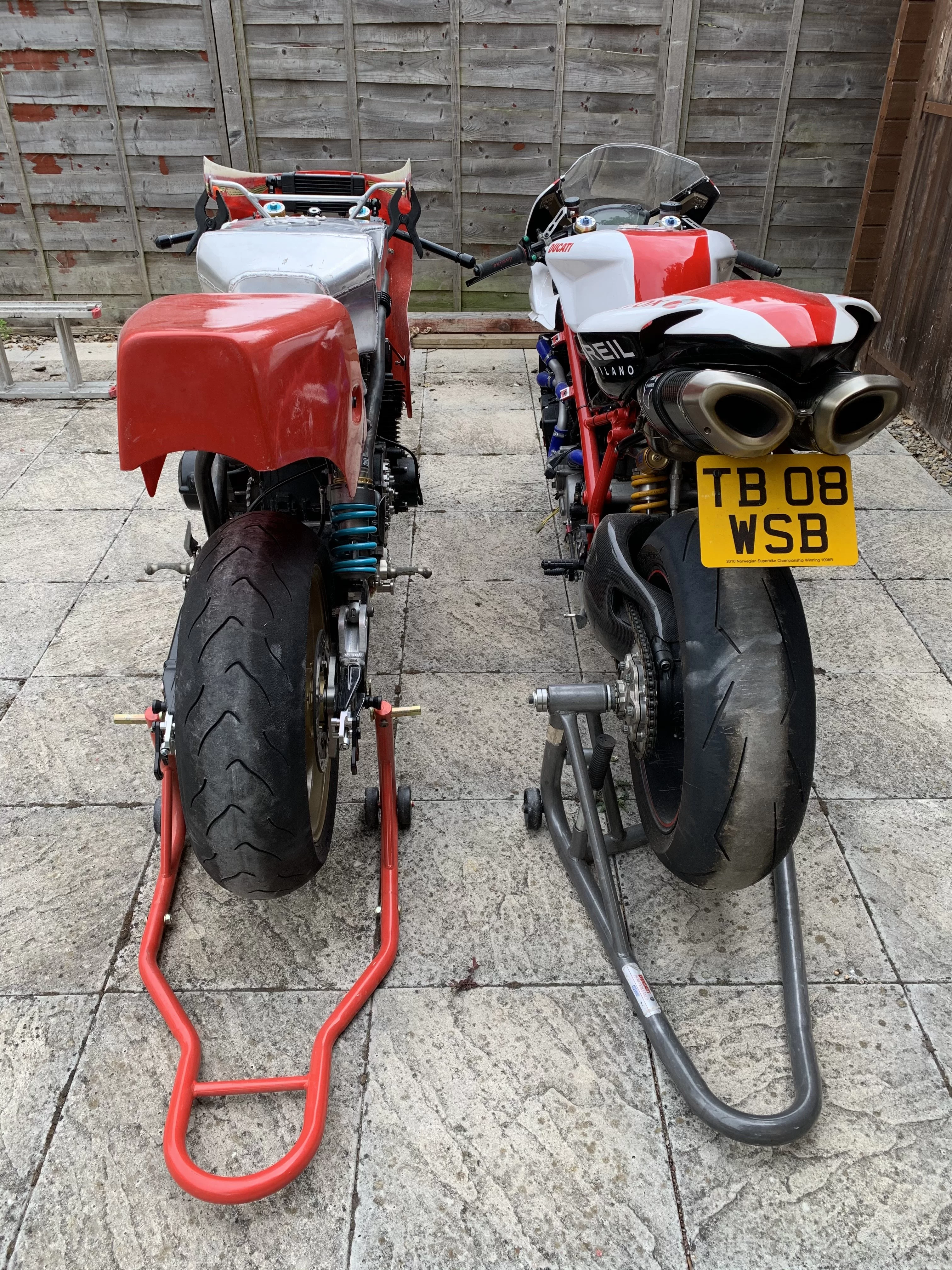

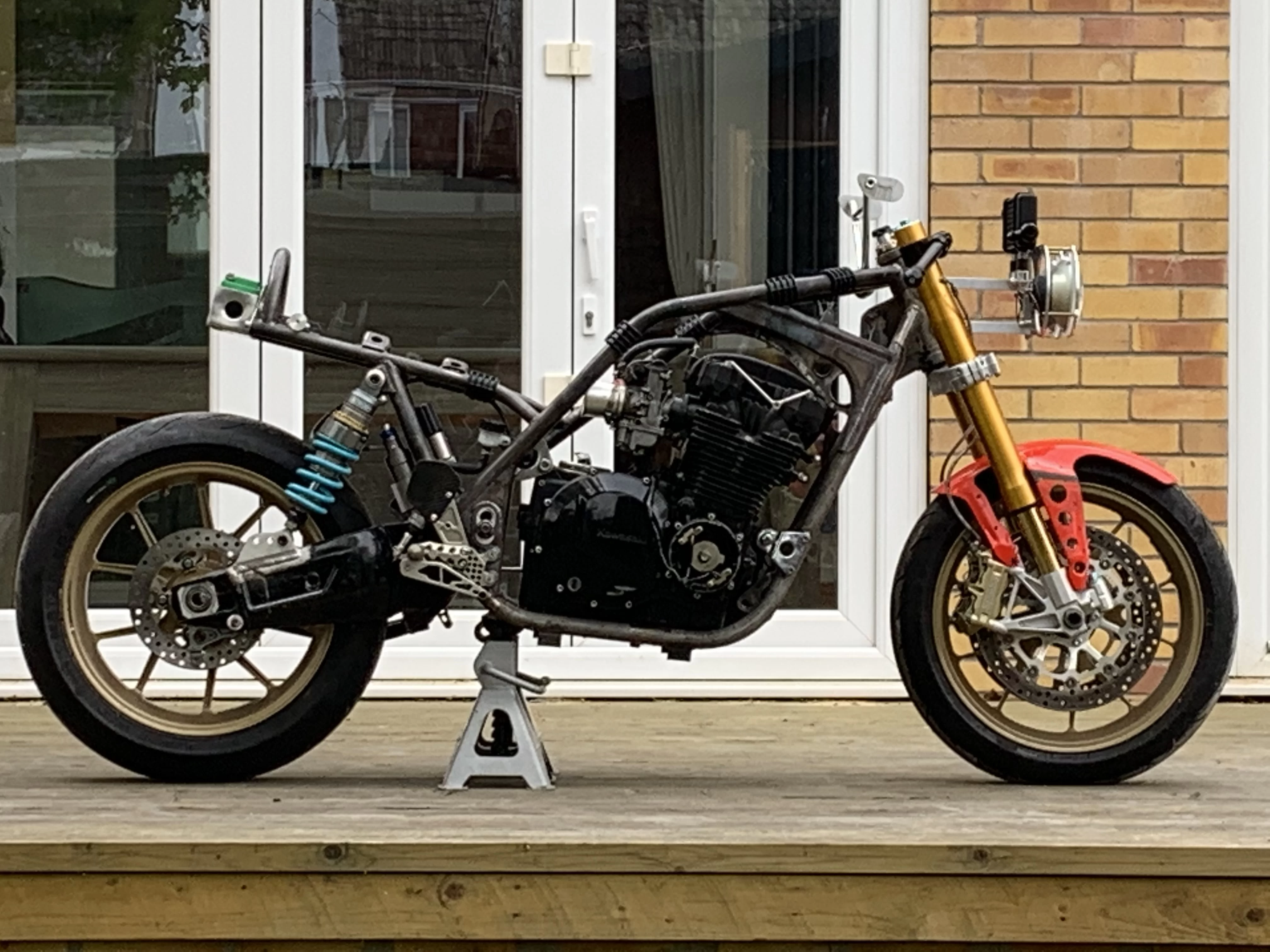

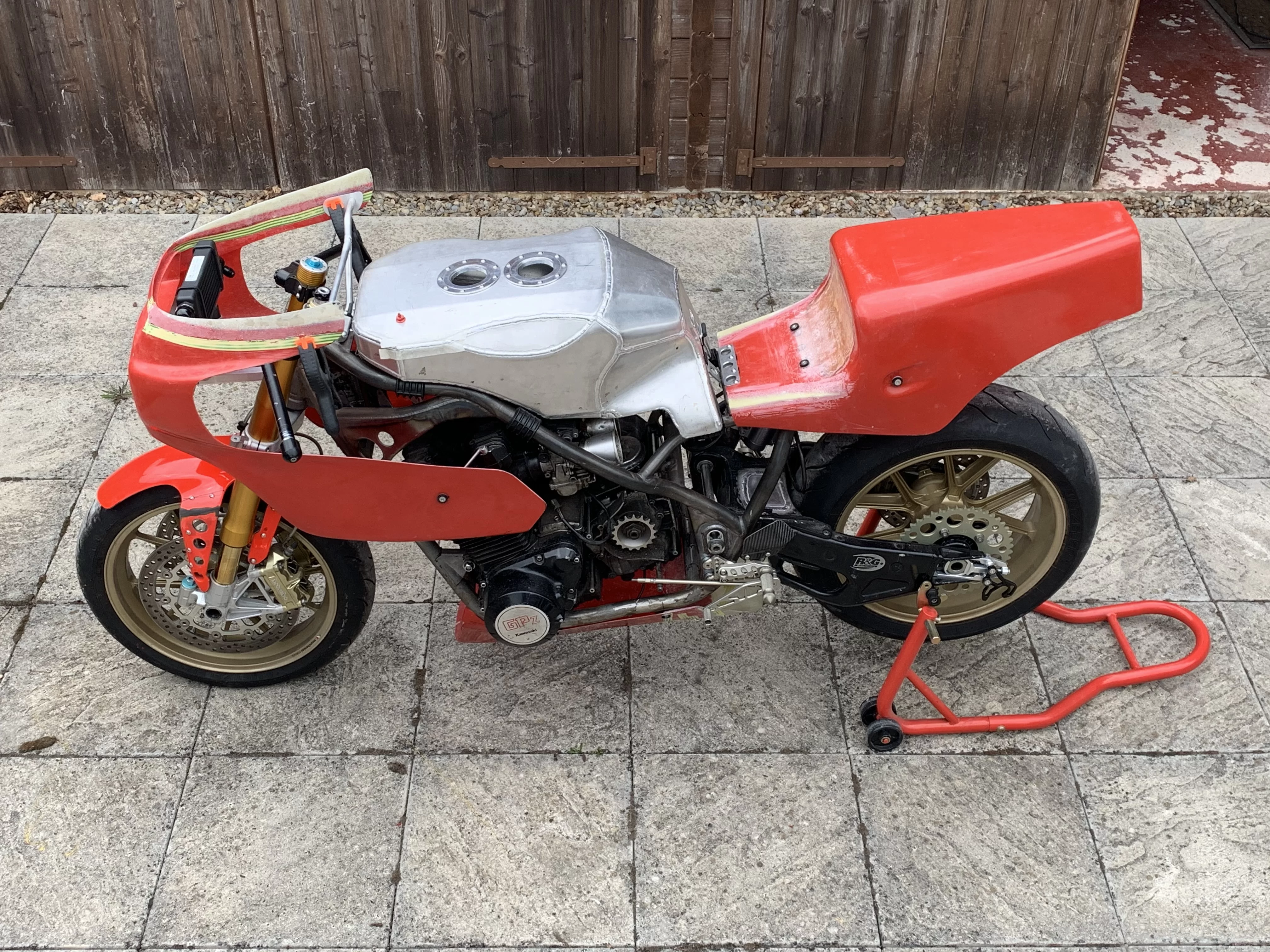

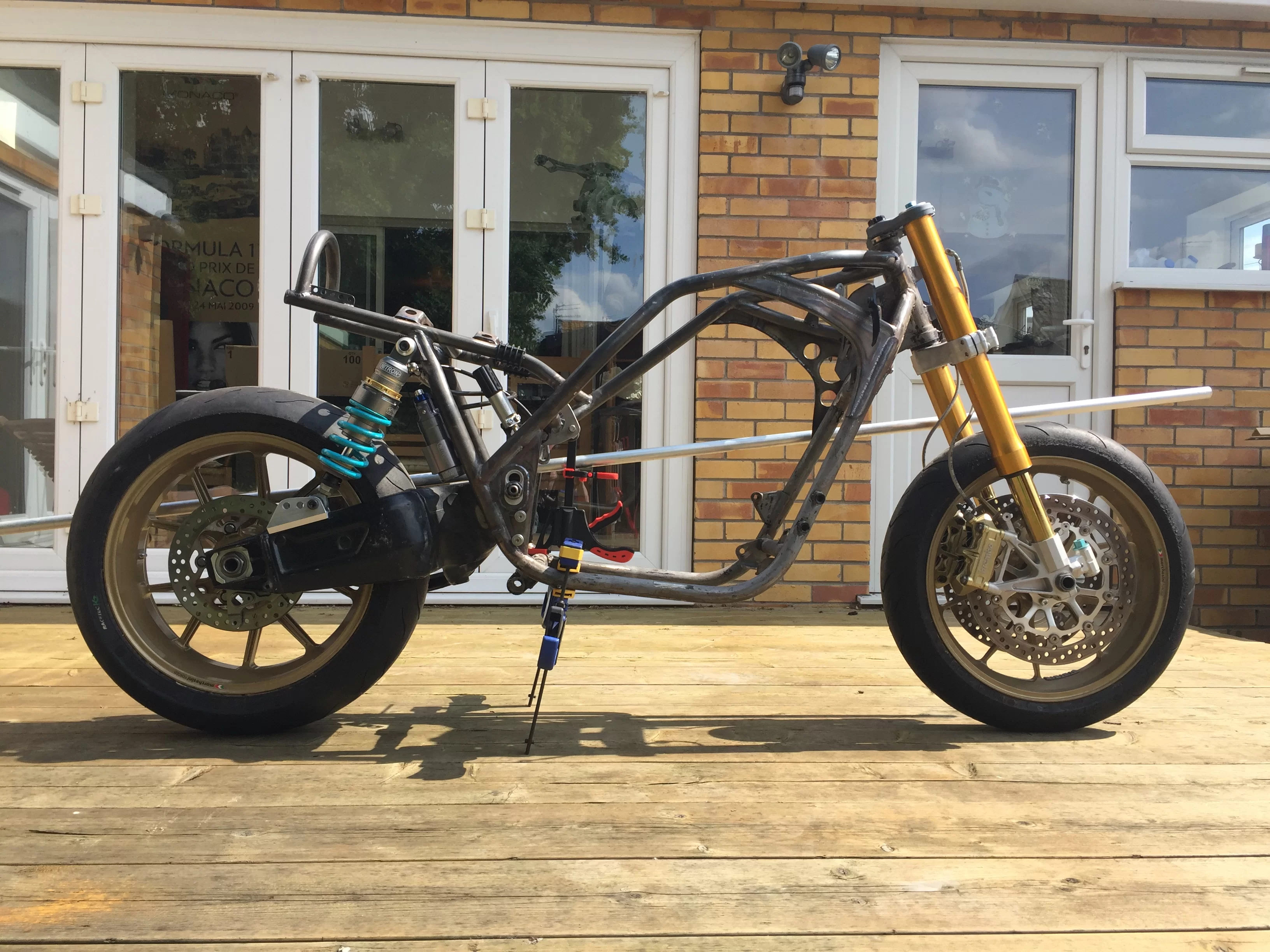

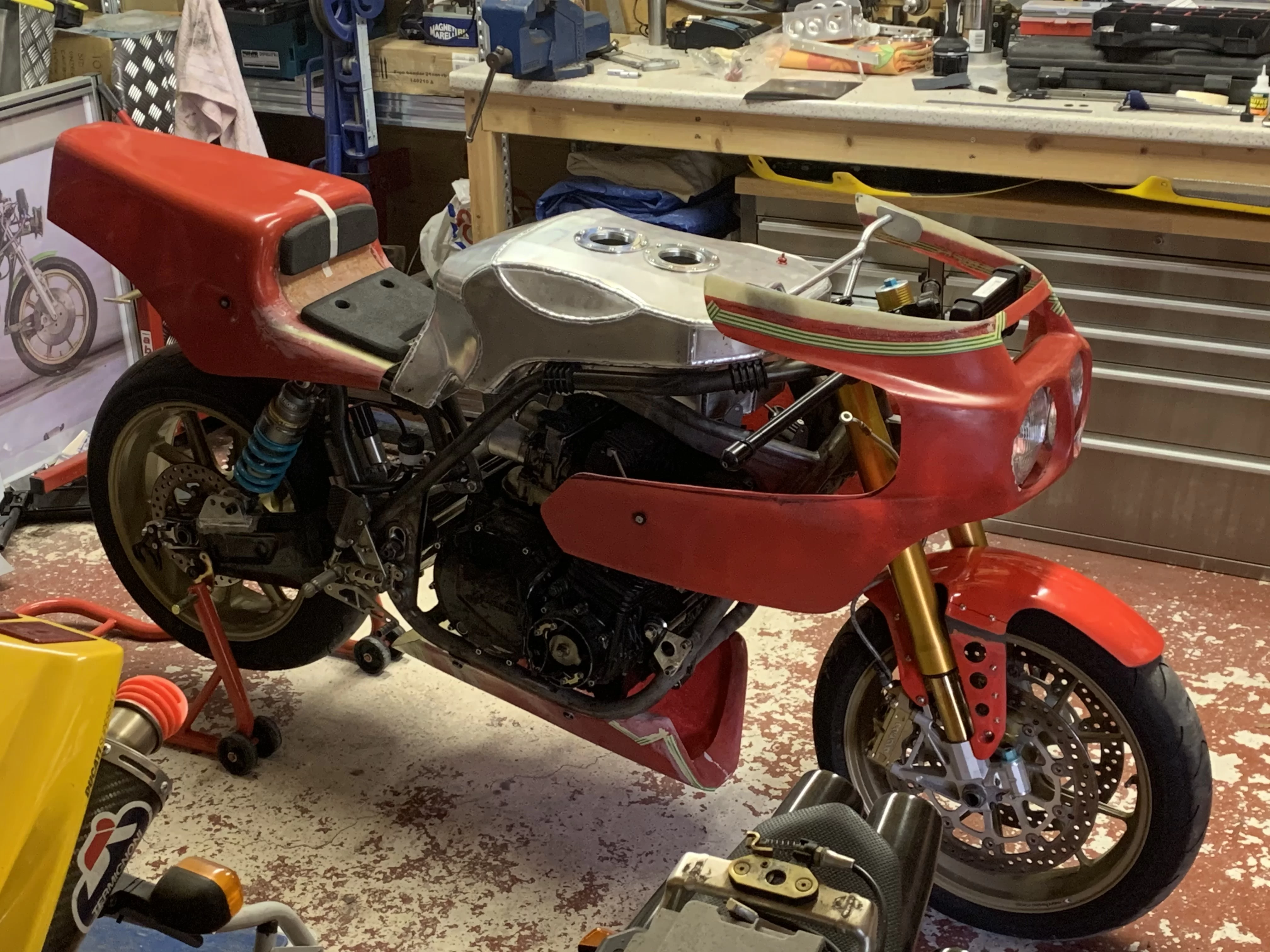

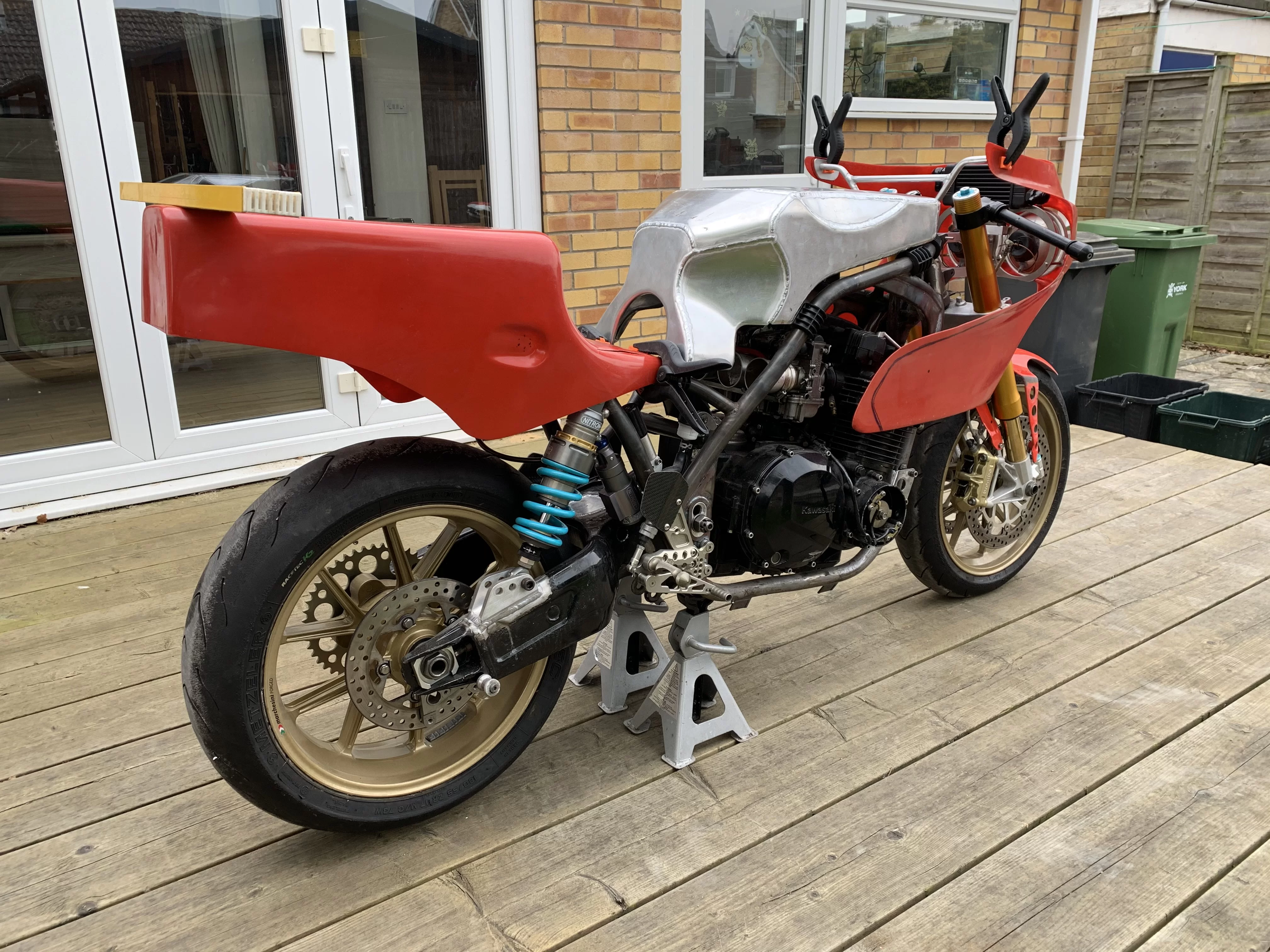

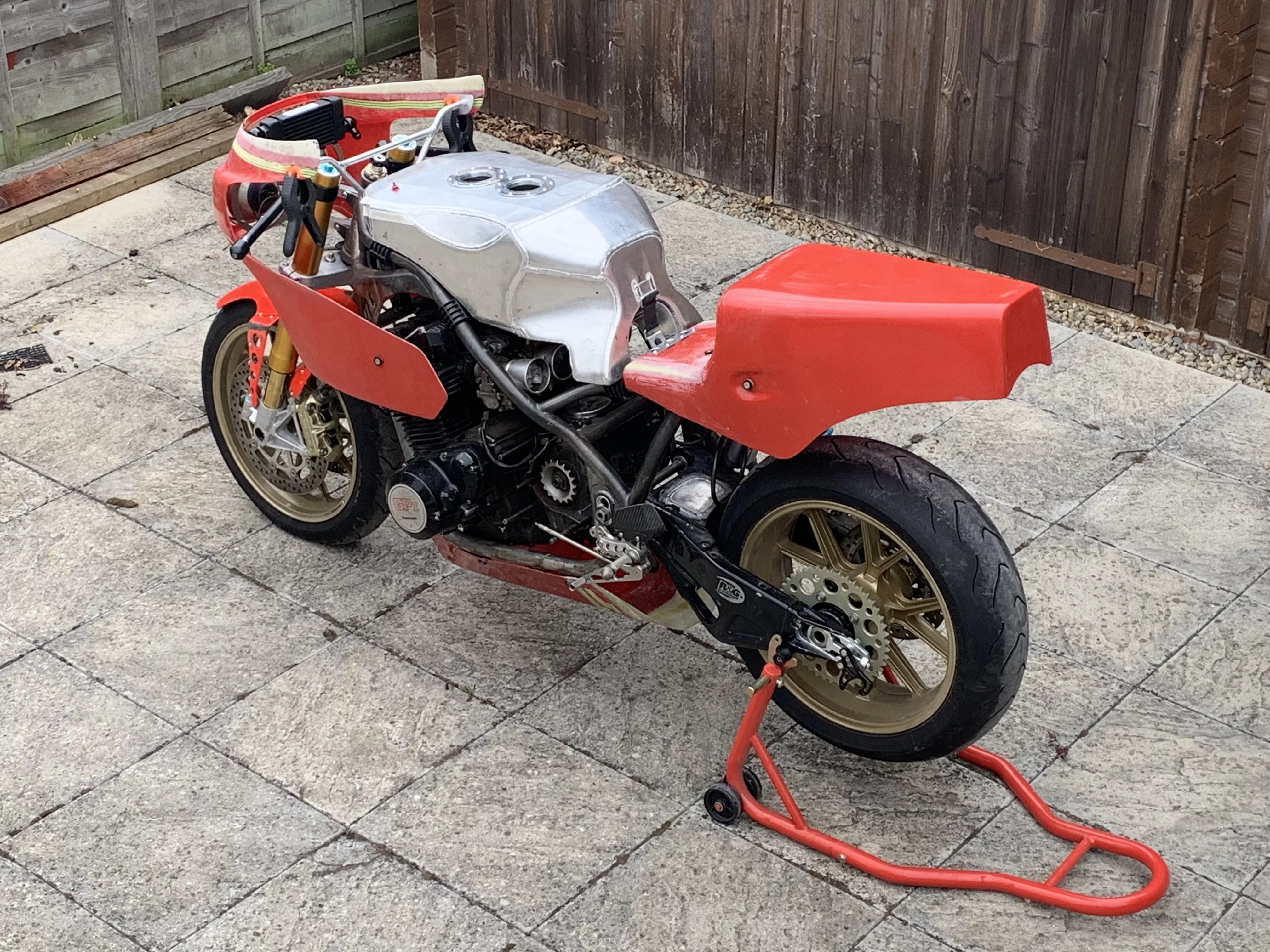

And dry build 1 is now complete - some pictures that make the whole project seem much closer to completion than it actually is - this is where progress slows to normal time again :whistle:
I threw a 1098R in some of the pics for scale :)


Kawasaki KR1000 Replica 160.webp



Kawasaki KR1000 Replica 161.webp



Kawasaki KR1000 Replica 162.webp



Kawasaki KR1000 Replica 163.webp



Kawasaki KR1000 Replica 164.webp



Kawasaki KR1000 Replica 165.webp



Kawasaki KR1000 Replica 166.webp



Kawasaki KR1000 Replica 167.webp



Kawasaki KR1000 Replica 168.webp



Kawasaki KR1000 Replica 169.webp



Kawasaki KR1000 Replica 170.webp


Now stripped and the Engine and Belly Pan are away at Chads - the next major stage being the Ti Segmented Exhaust that he is making for the bike :love:

Kawasaki KR1000 Replica 171.webp


TBC....

Well, back to normal pace now I've pretty much caught up with the story so far!

Monday I was over to Hull for Chad to do a few finishing touches to the frame:

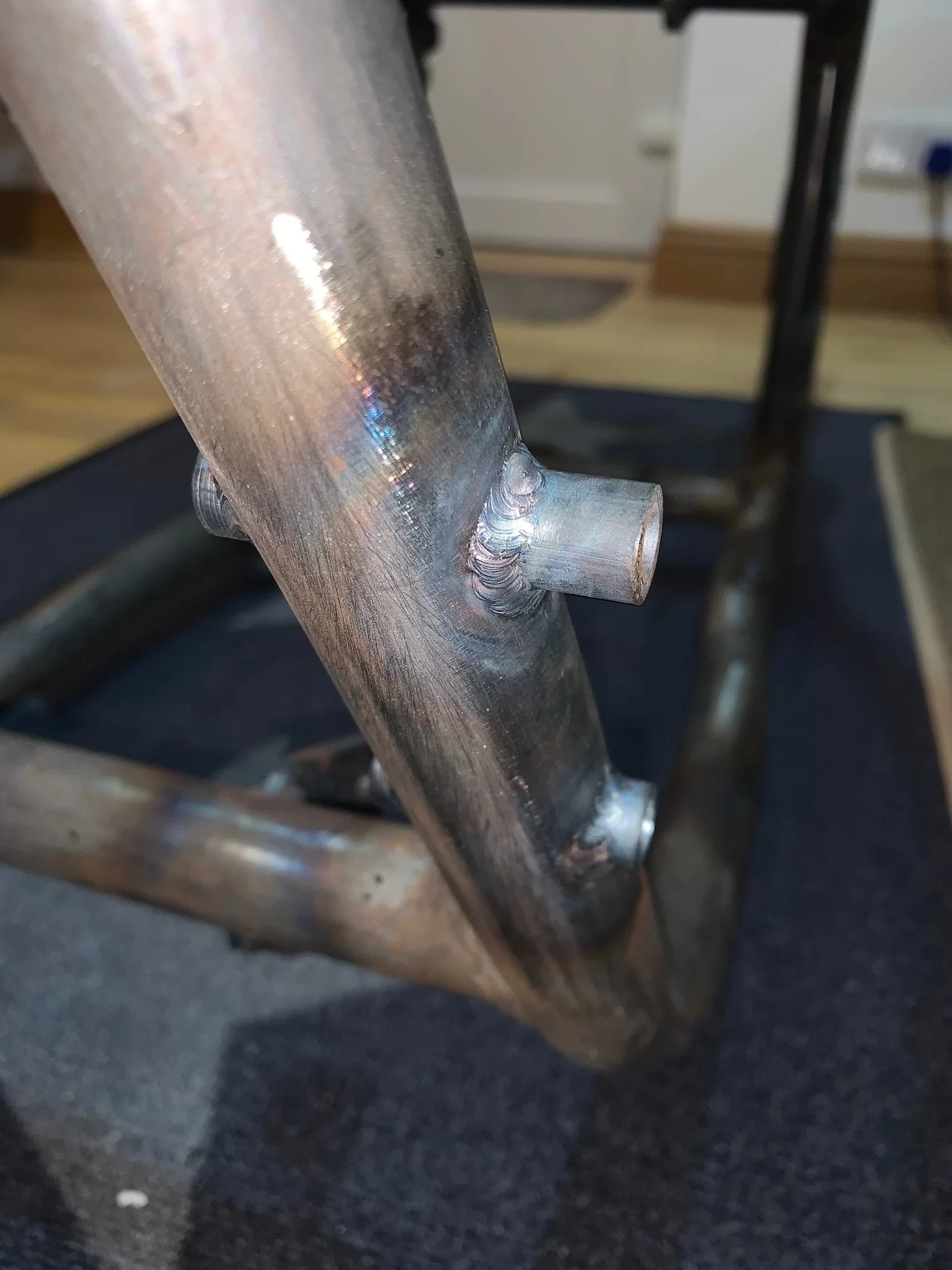

This was an unsightly box section mount on the original down tubes and it had been bugging me for a while - so I chopped it off and bored the frame for tubes so I could use a triangular plate mount as per the original race bike...

Kawasaki KR1000 Replica 172.webp

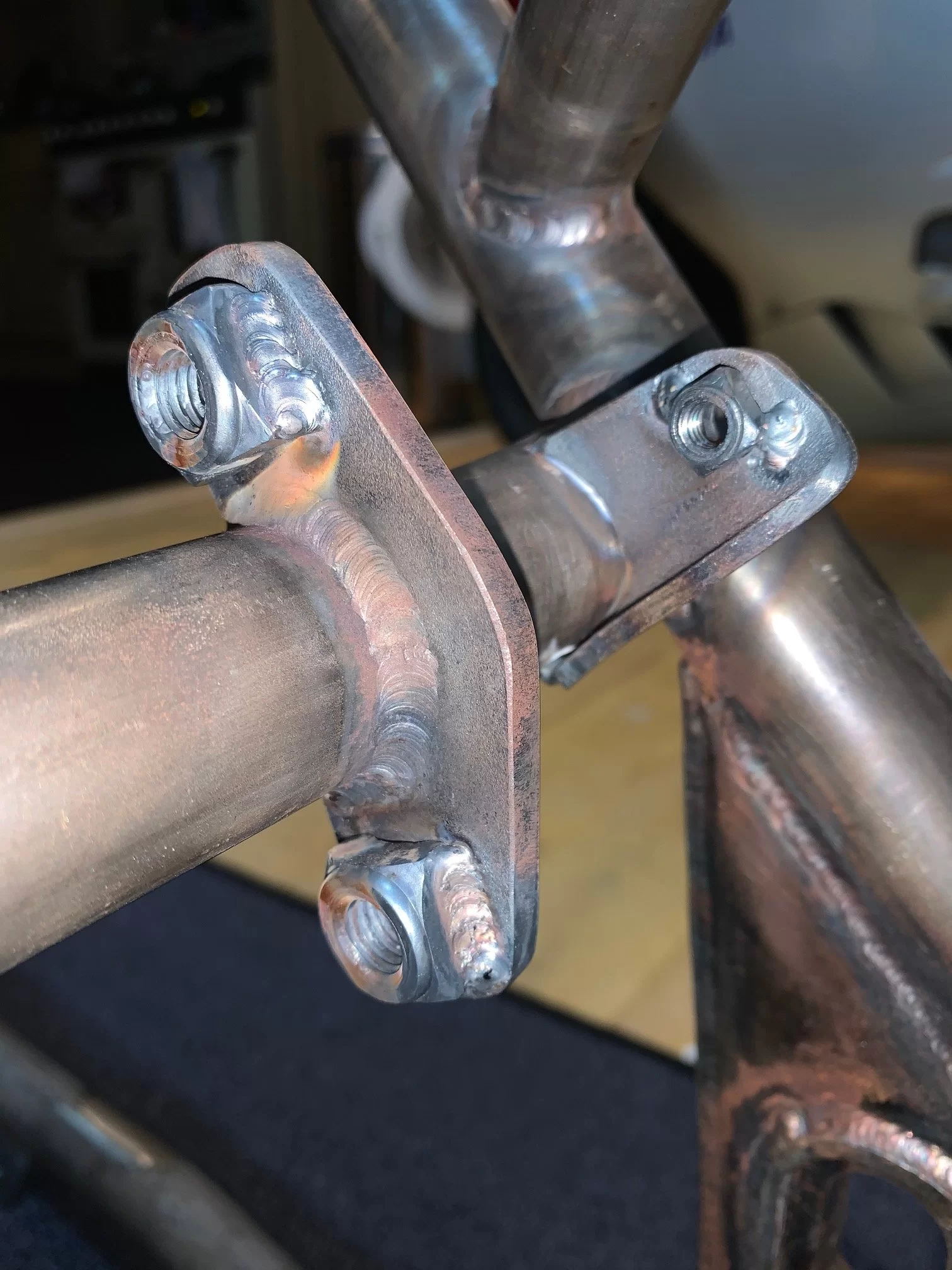

A few Weld Nuts were fitted to make assembly easier...

Kawasaki KR1000 Replica 173.webp

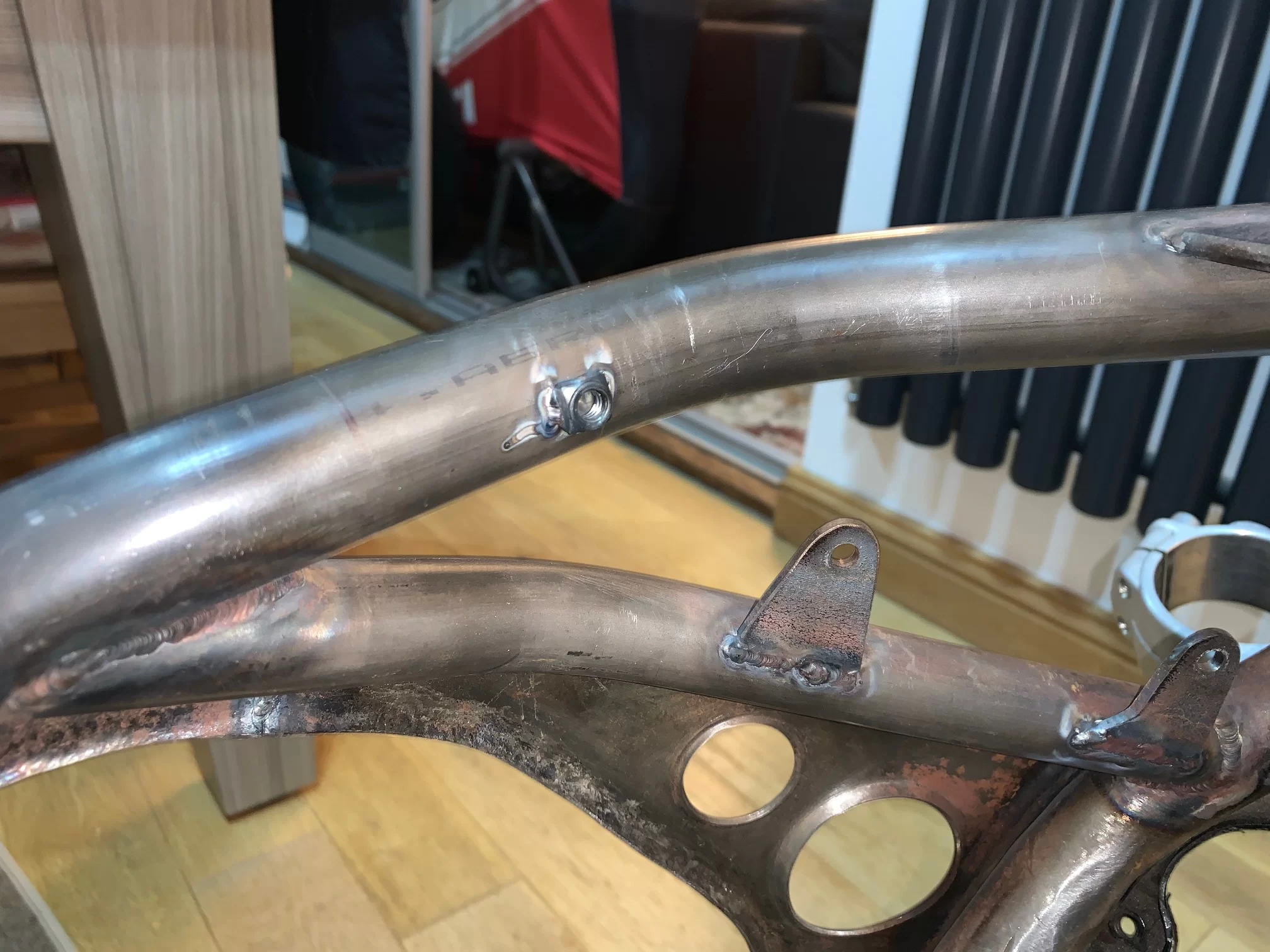

Also added on the inside of the main frame rails in readiness for the wiring harness 'tubes' that I will be bolting in place for neatness:

Kawasaki KR1000 Replica 174.webp

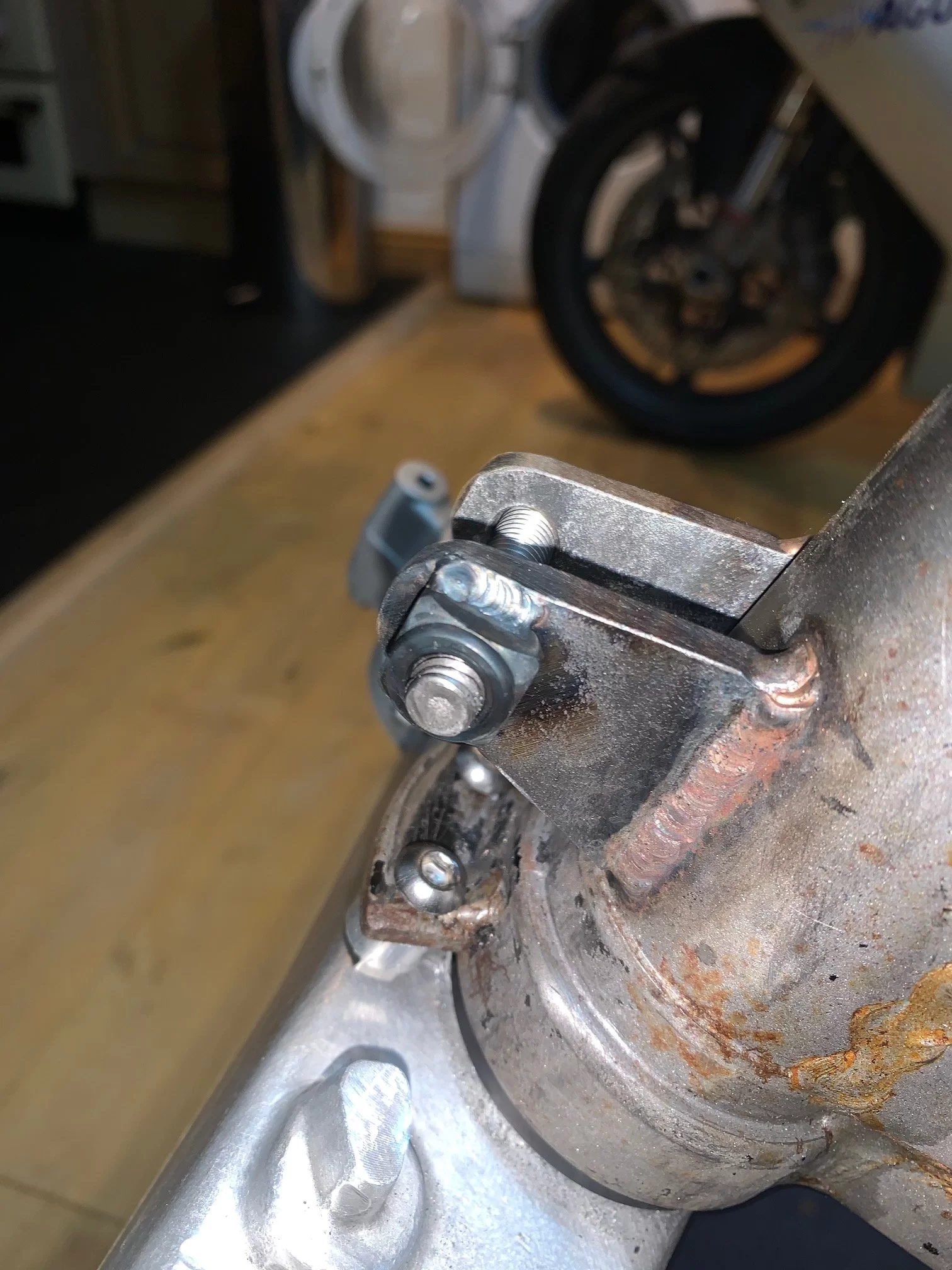

Weld nuts for the front fairing / headlight mounting bracket in place:

Kawasaki KR1000 Replica 175.webp

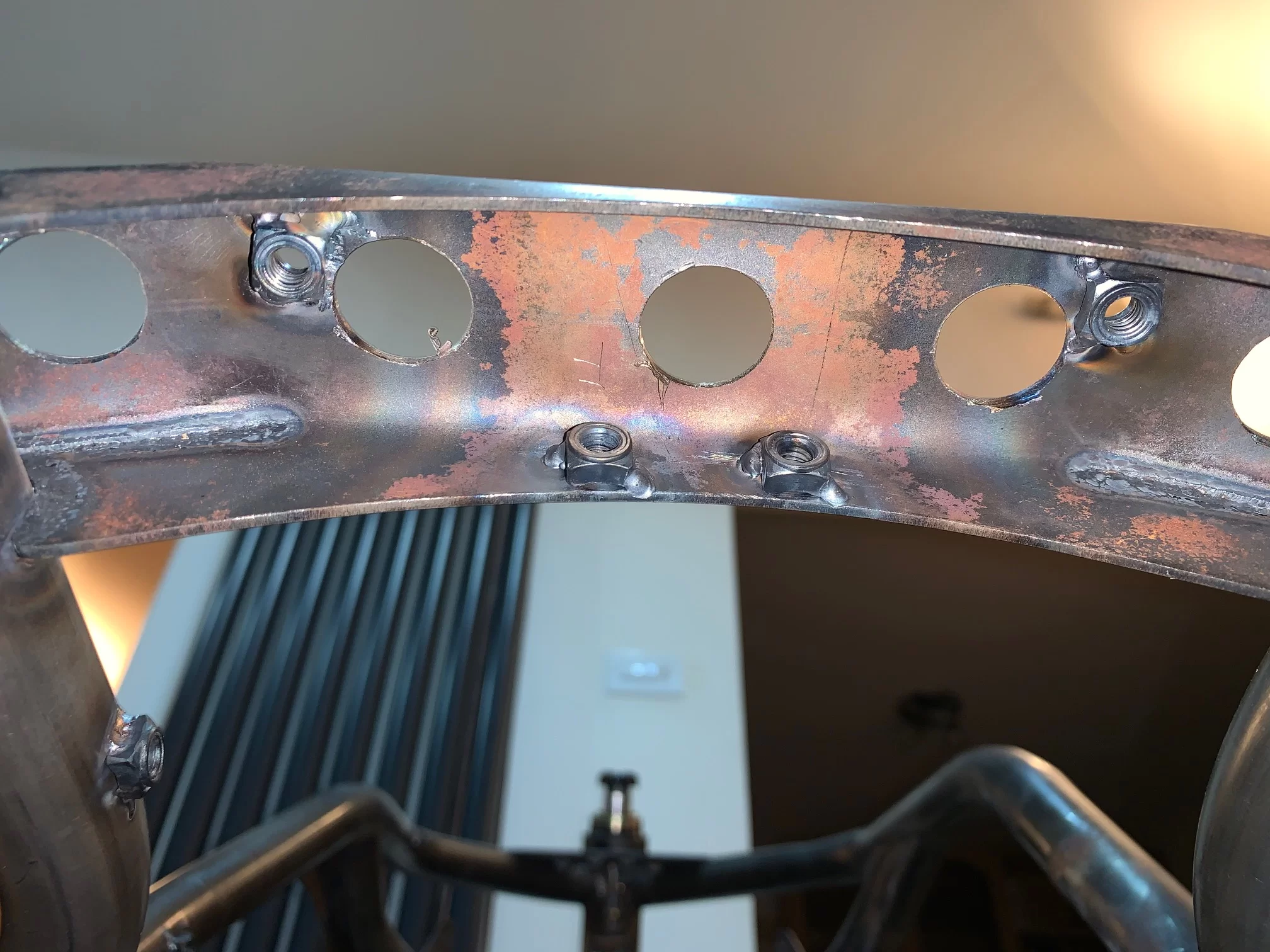

And more weld nuts in non-accessible areas...

Kawasaki KR1000 Replica 176.webp

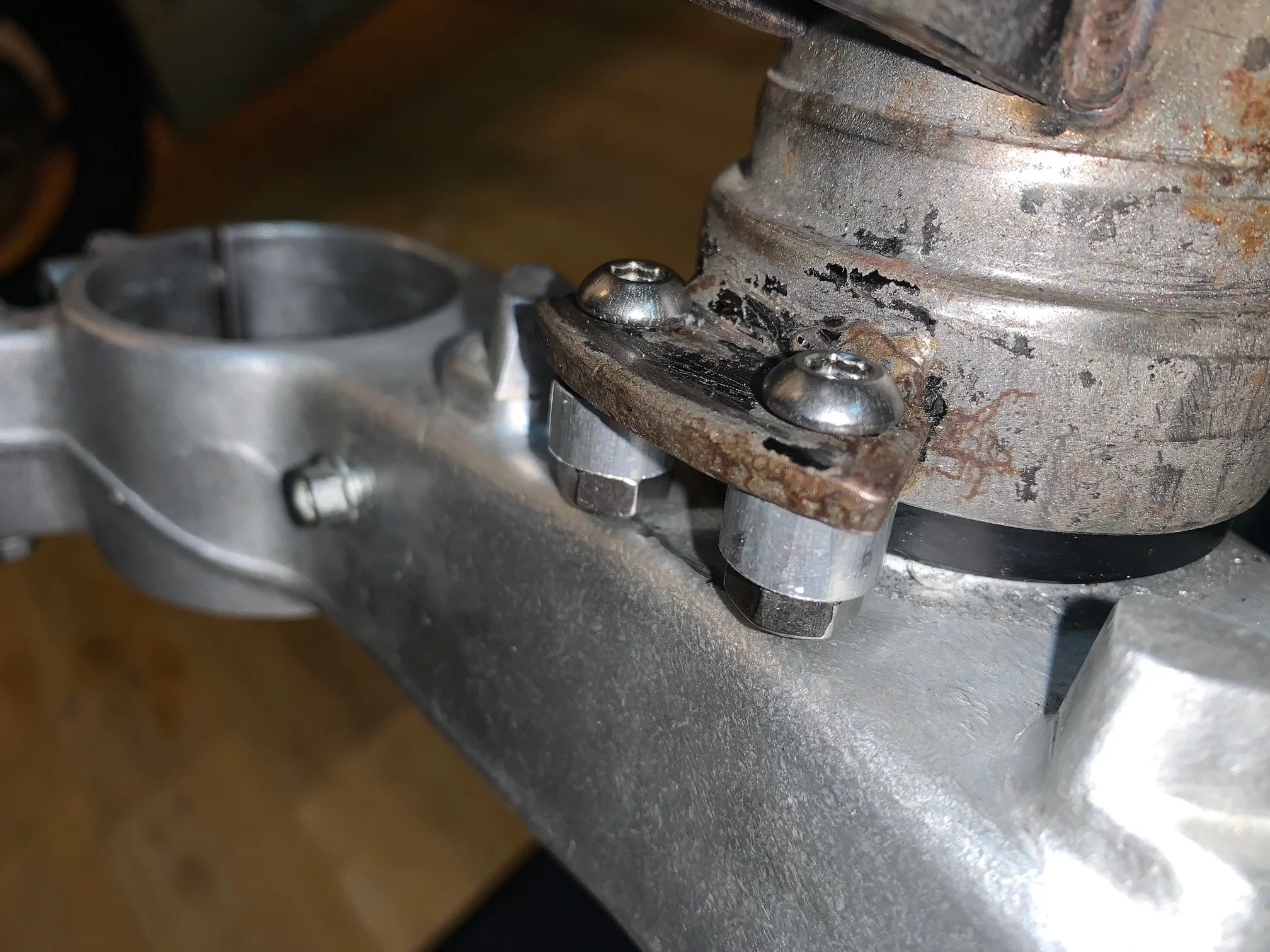

Today I drilled and tapped the original steering stop and added alloy spacers to work at the correct level for the bottom yoke stops:

Kawasaki KR1000 Replica 177.webp

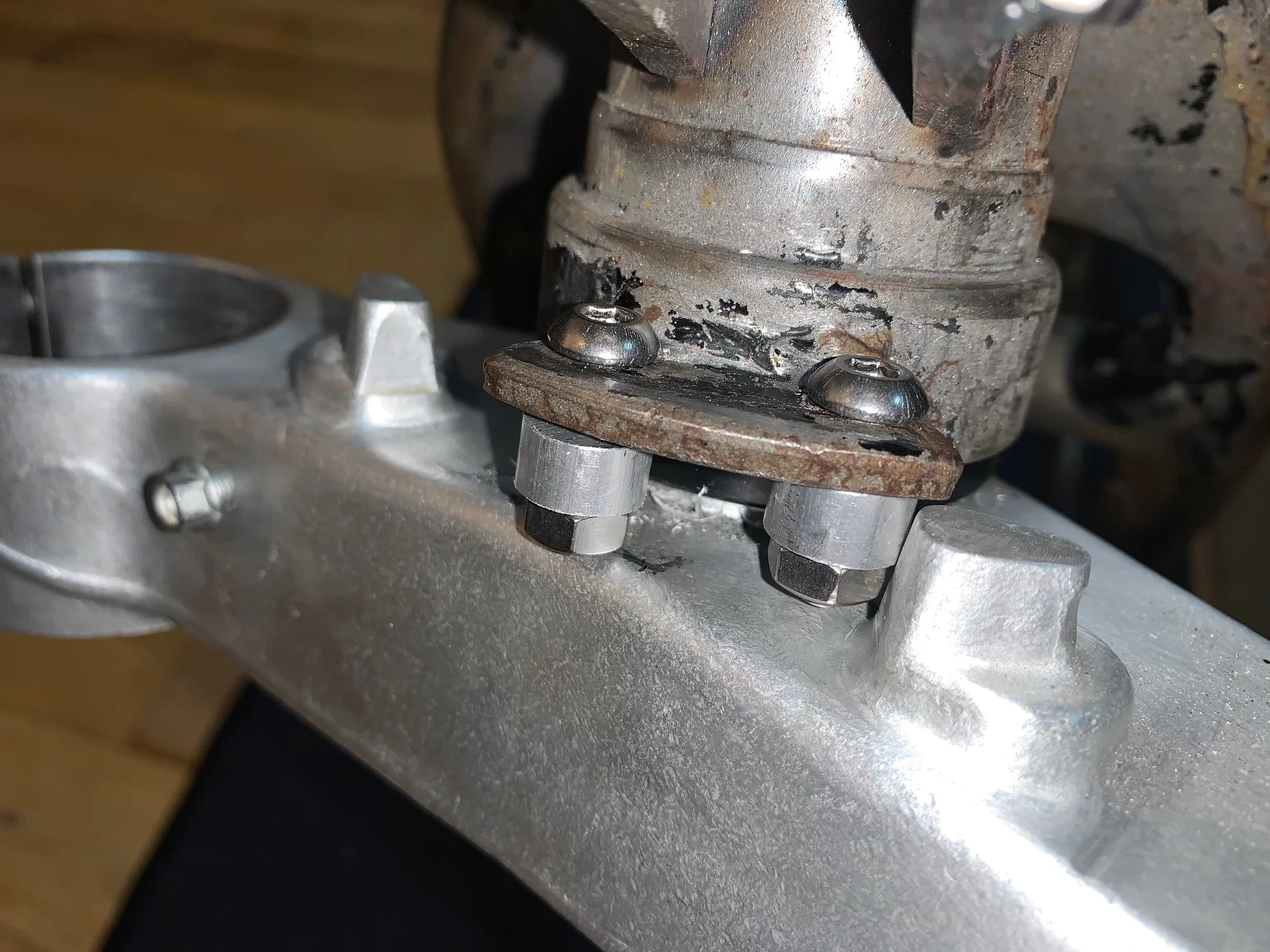

If needed they can be swapped for larger diameter spacers for fine tuning but they are somewhere near...

Kawasaki KR1000 Replica 178.webp




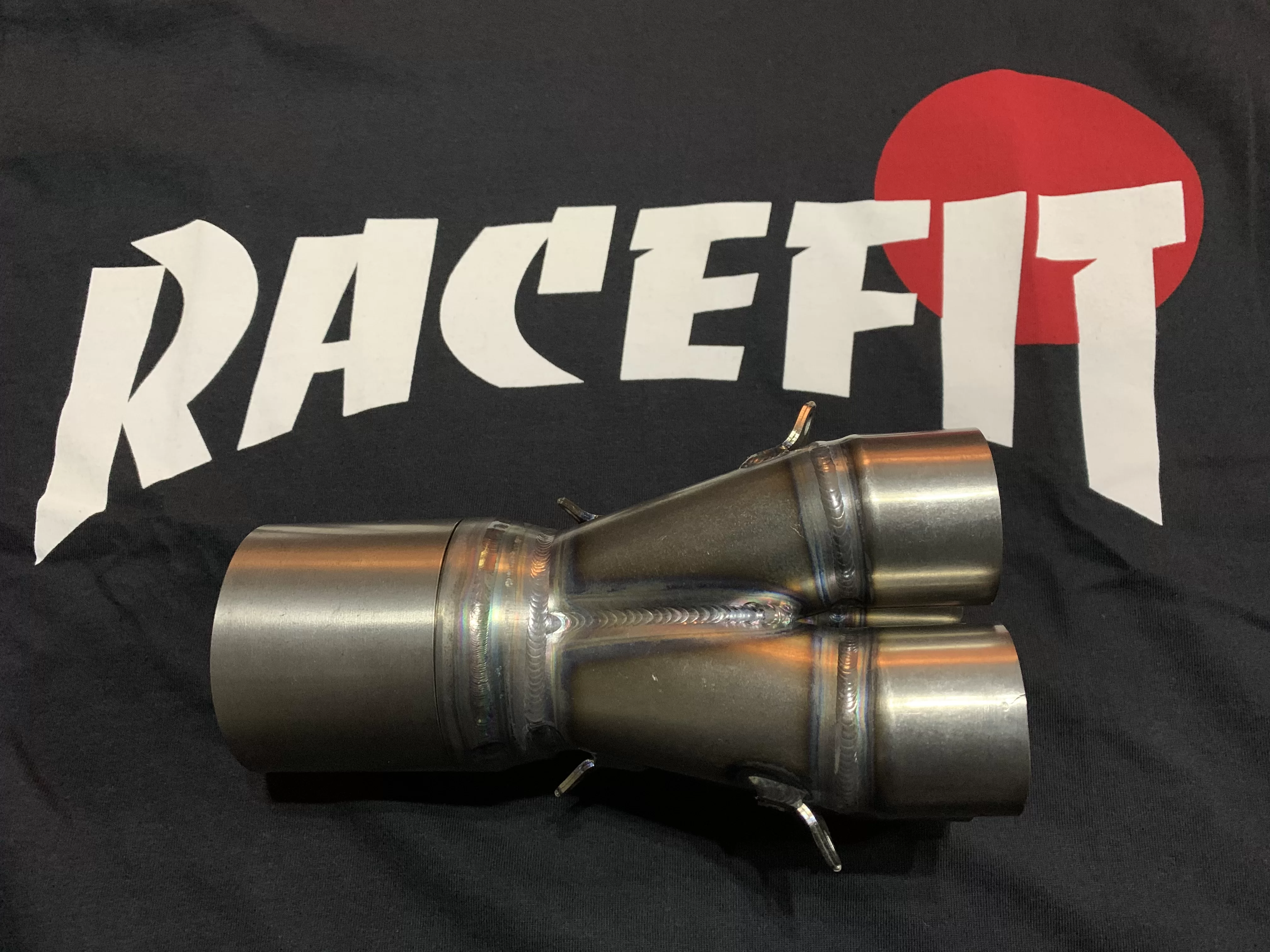

Meanwhile, far far away (about 40 miles anyhoo) Chad has been busy making progress on the Exhaust!!!

A bit of Chad jiggery-pokery and ingenuity was needed to 'engineer' the fit of the large 40mm tubing into the exhaust ports. The tubes will be held in place with springs.

Kawasaki KR1000 Replica 179.webp

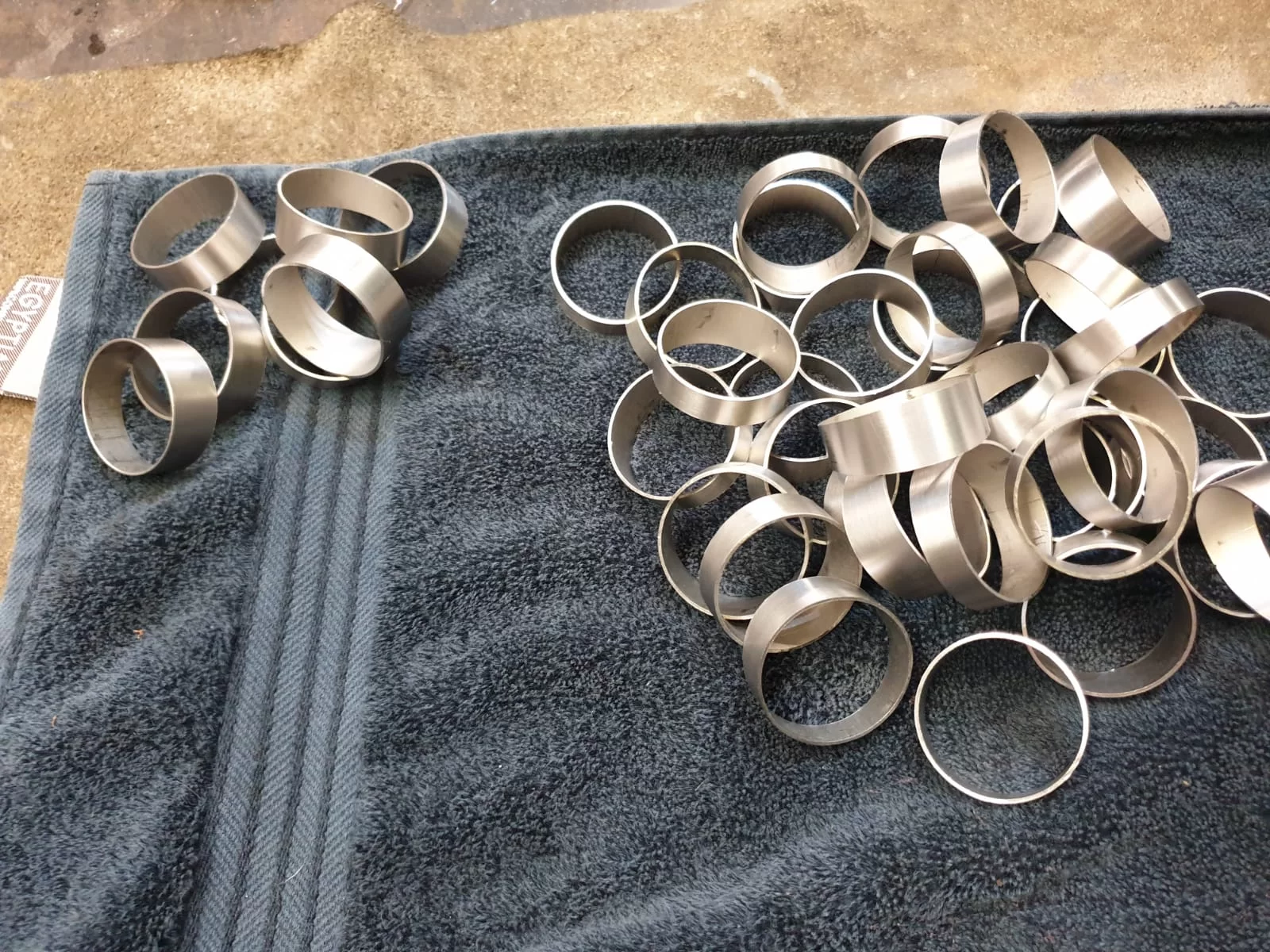

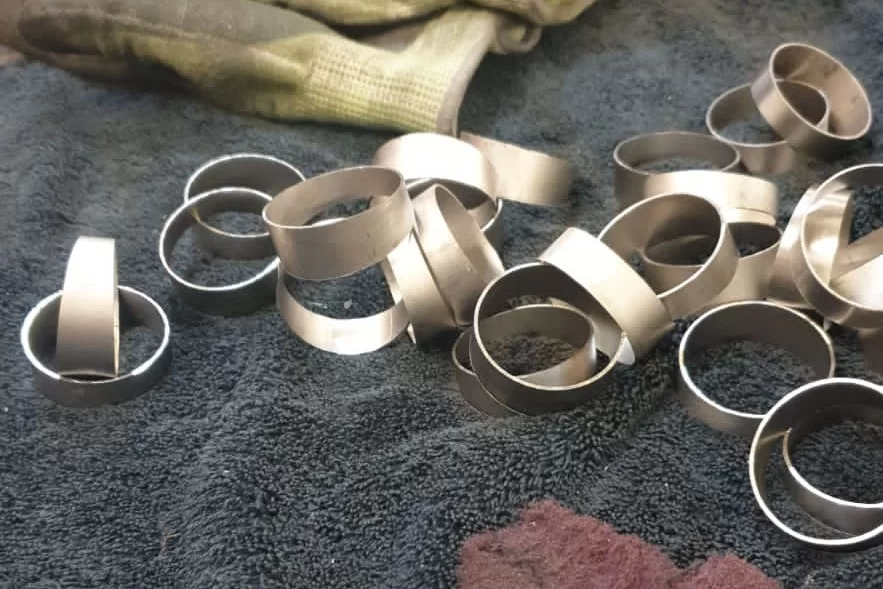

The first 40 sections of Titanium loveliness cut out for the downpipe top bends :love:

Kawasaki KR1000 Replica 180.webp


Two tacked together :love::love:

Kawasaki KR1000 Replica 181.webp

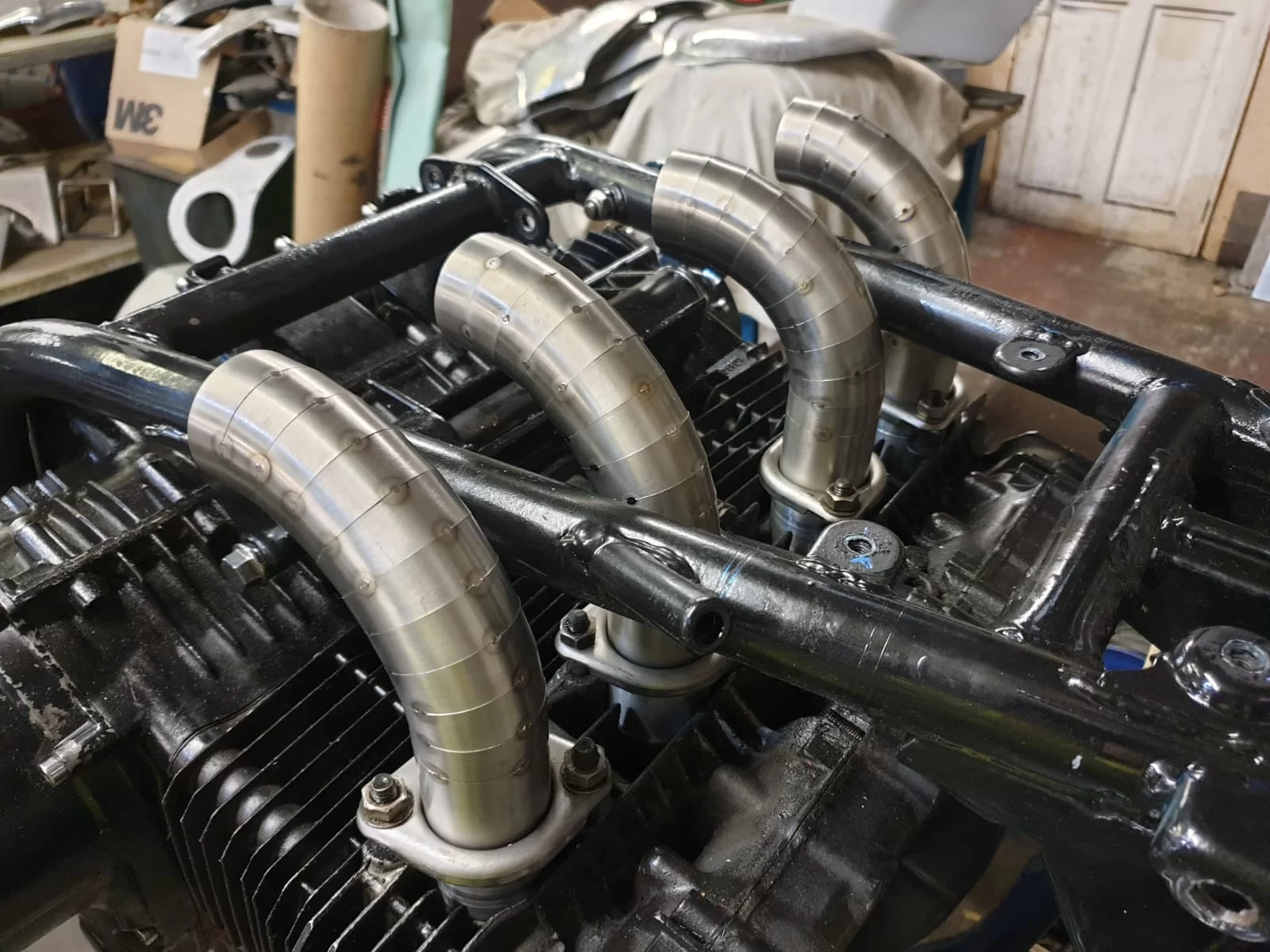

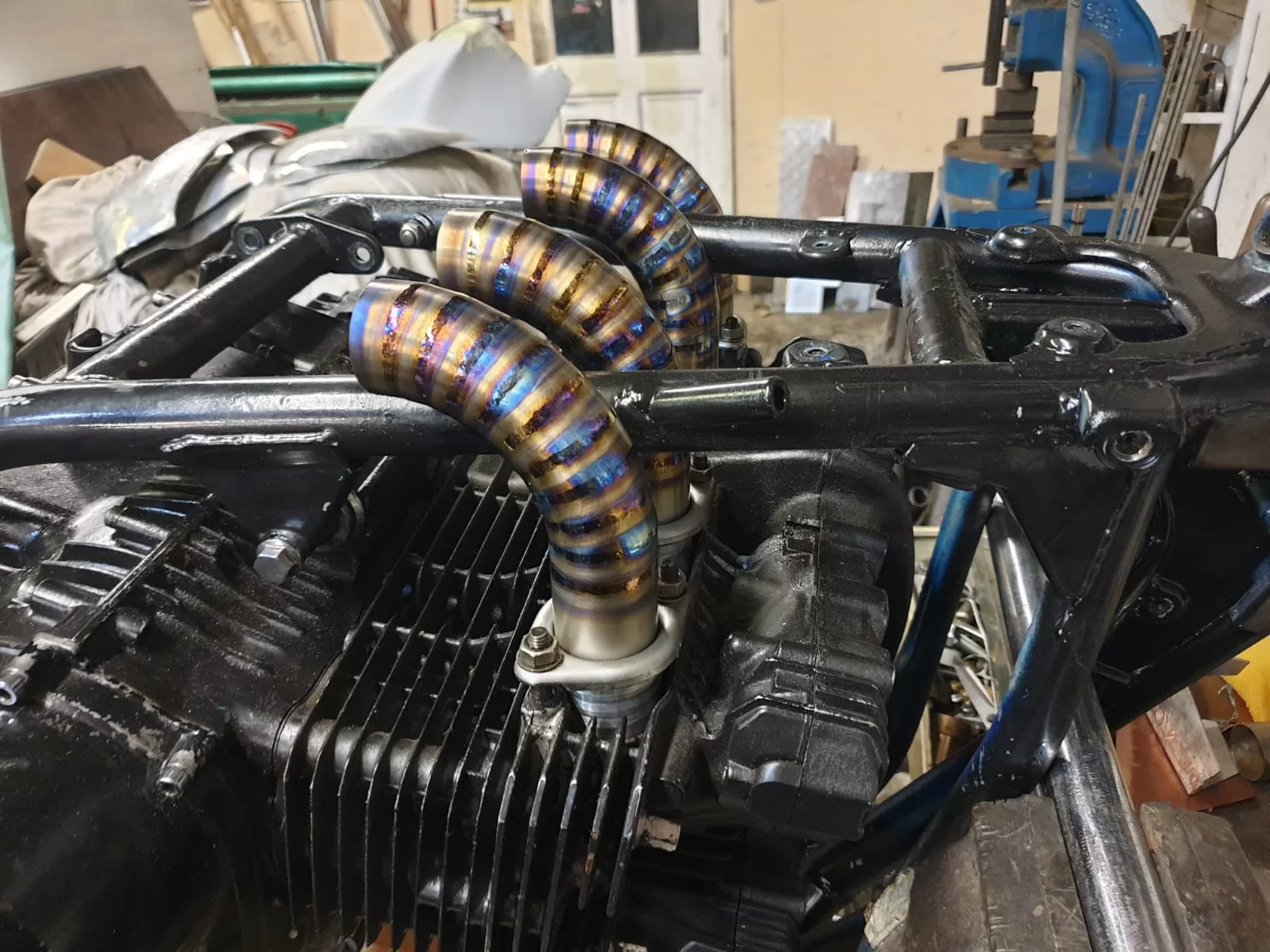

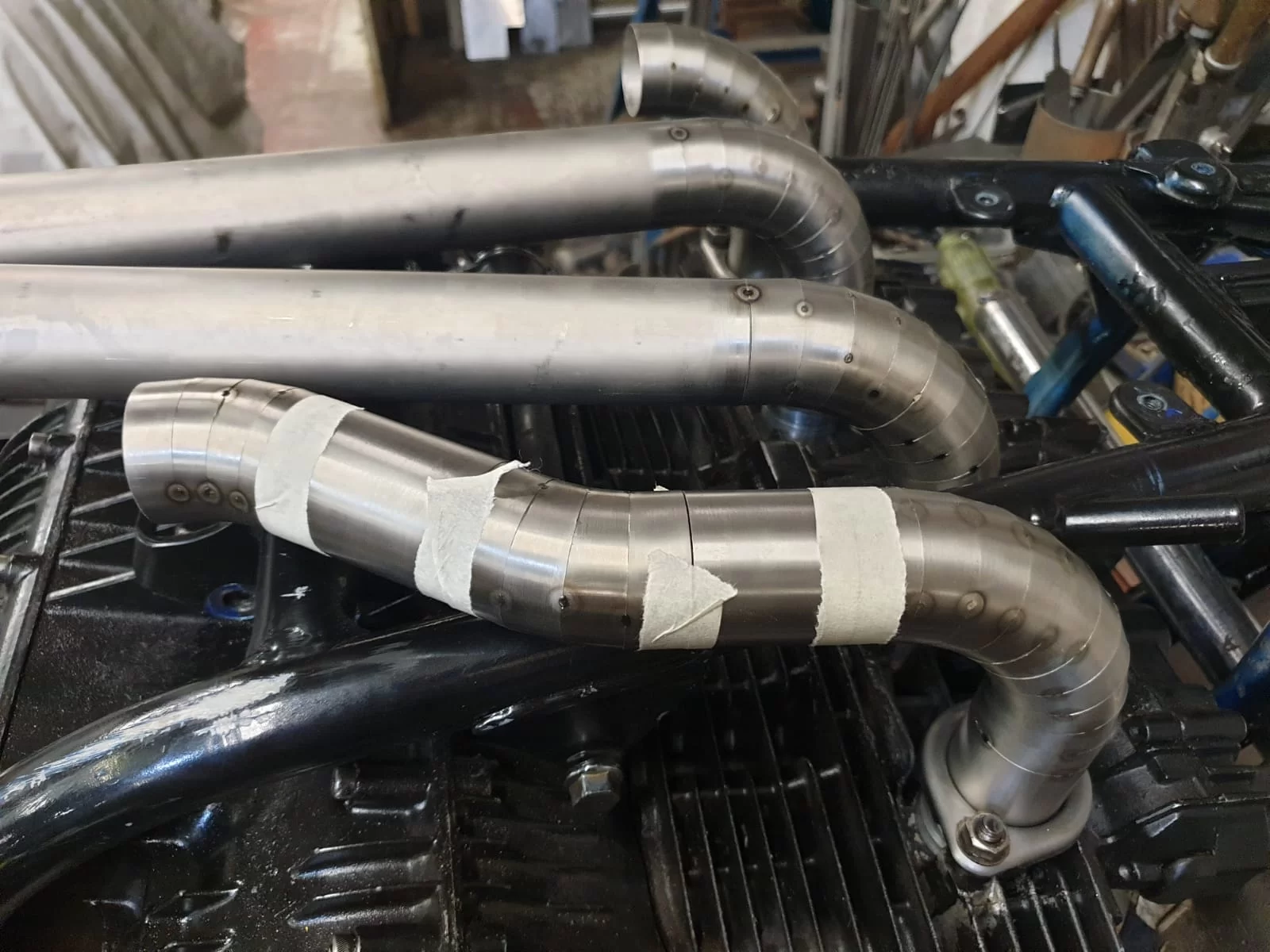

And then there was 4 :love::love::love::love:

Kawasaki KR1000 Replica 182.webp


Well happy bunny here 🐰

A huge thanks and shout out to Chad! :)(y)

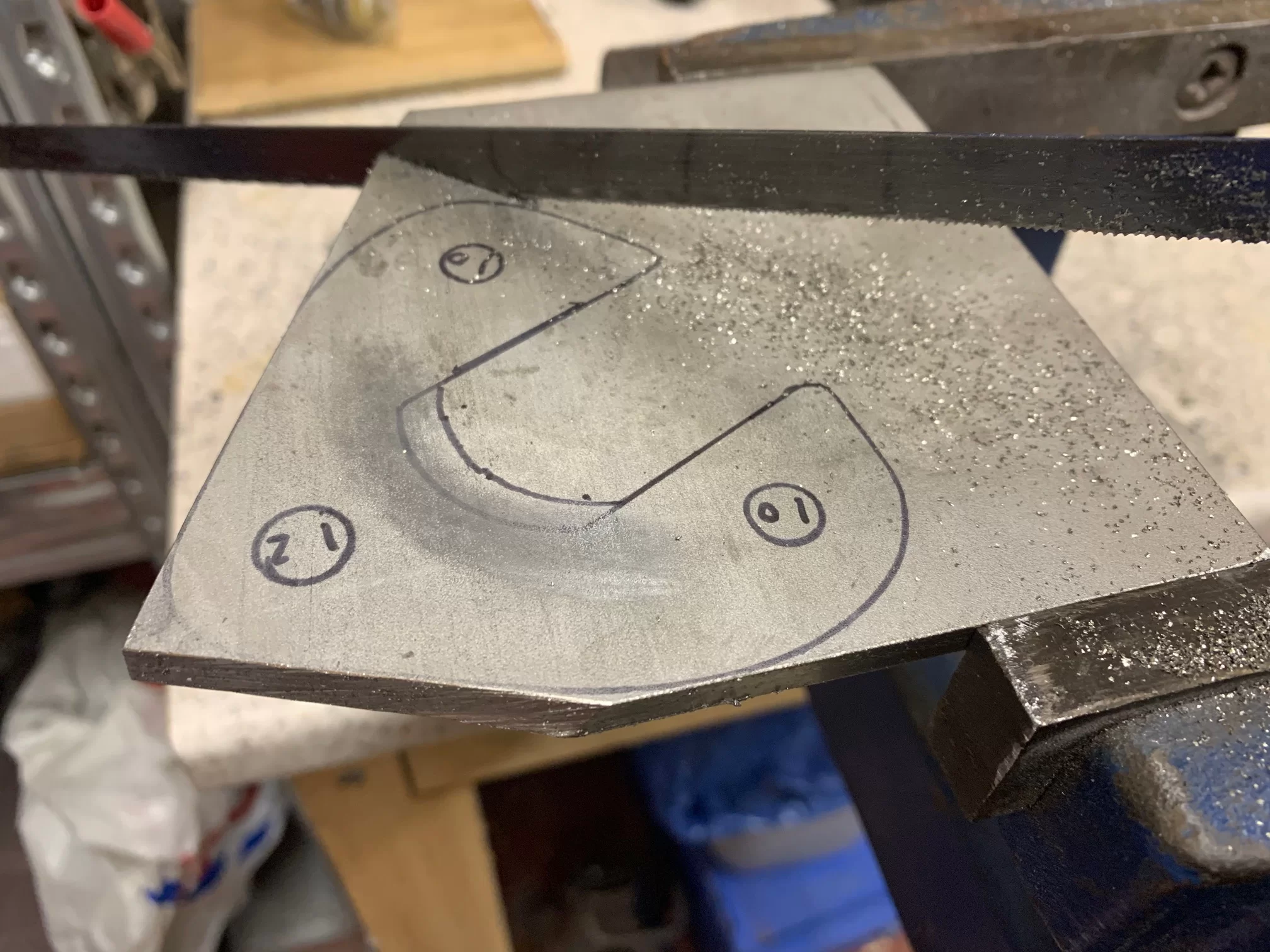

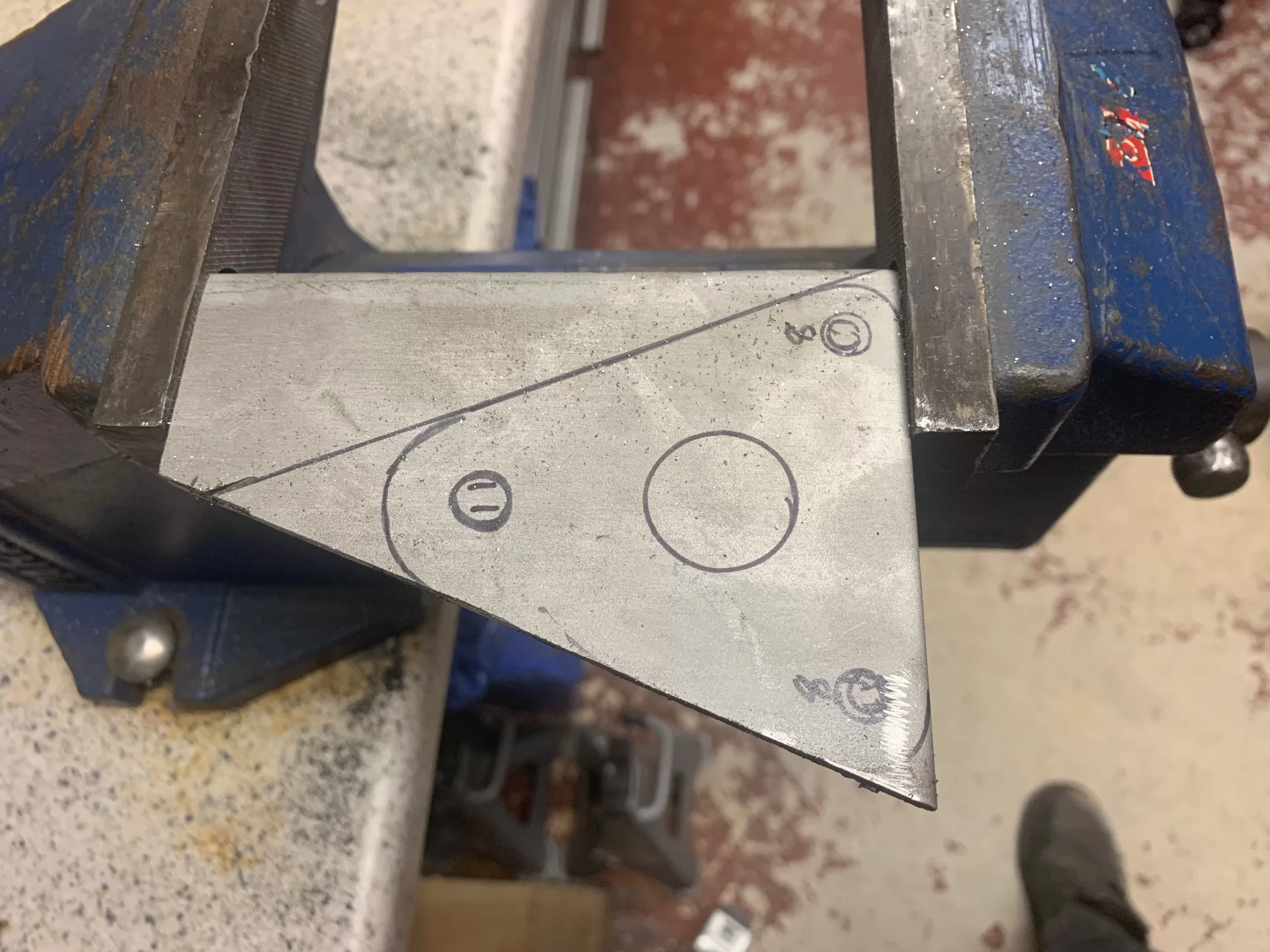

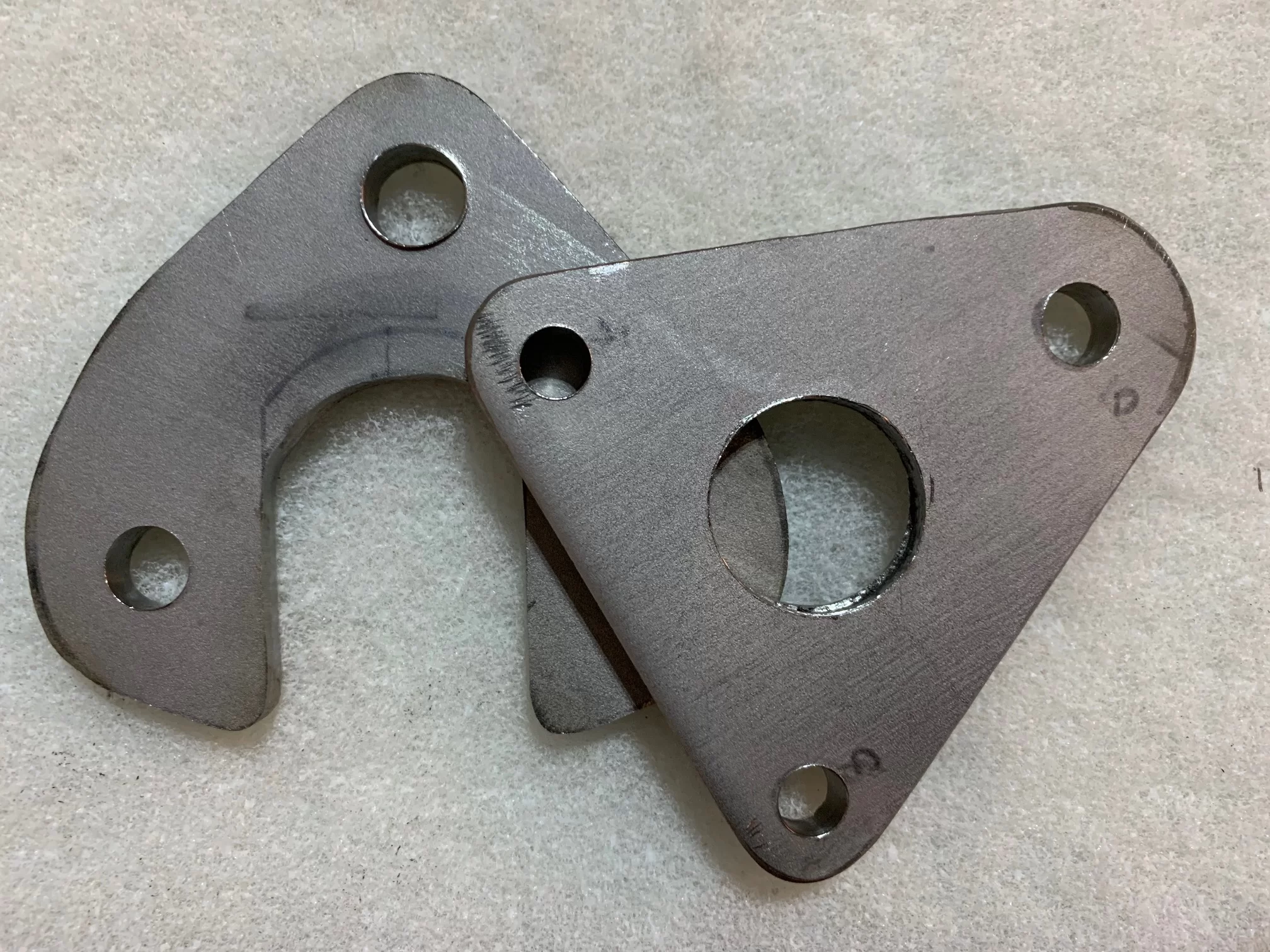

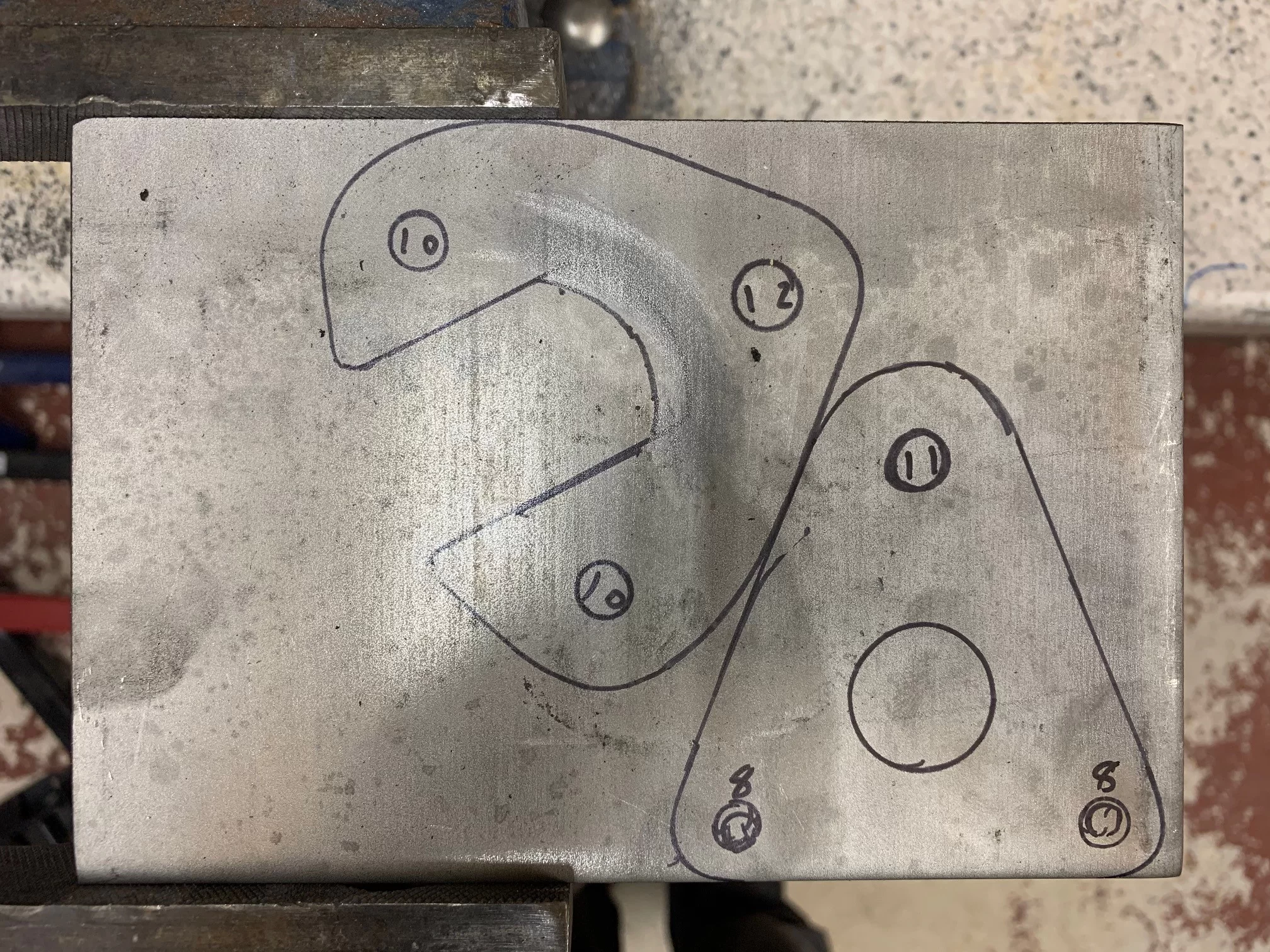

So, just been plodding along making a couple of stainless engine mount plates from 7mm thick 316 grade Stainless Plate.

Hand hewn and filed, then polished with Wet & Dry from 60 grit down to 1200. Need a bit more polishing and the large hole smoothing when my flapper wheels arrive, but nearly there.


Kawasaki KR1000 Replica 183.webp



Kawasaki KR1000 Replica 184.webp



Kawasaki KR1000 Replica 185.webp



Kawasaki KR1000 Replica 186.webp



Kawasaki KR1000 Replica 187.webp
